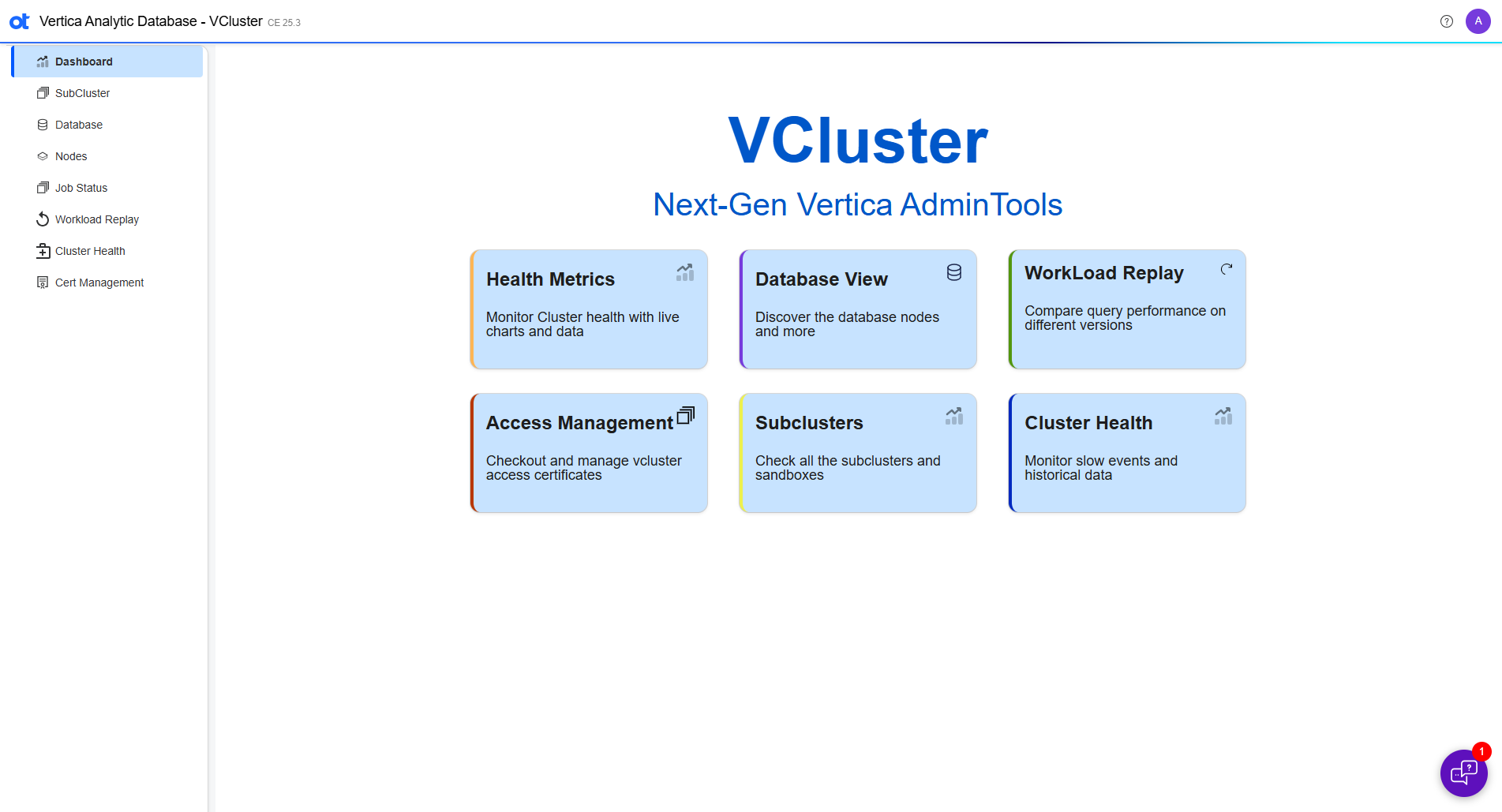

• 2.1: Dashboard
• 2.2: Subcluster
• 2.3: Database

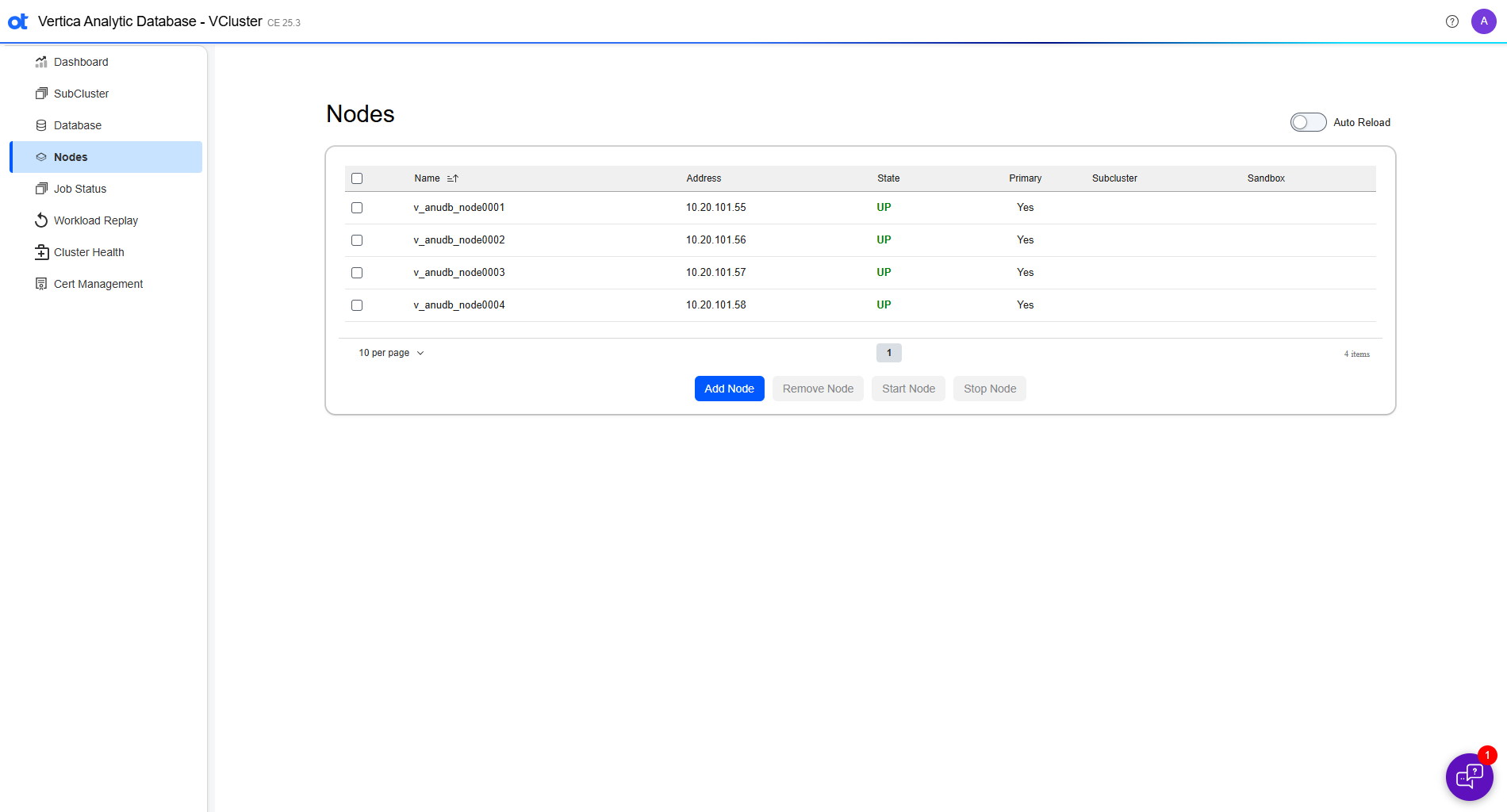

• 2.4: Nodes

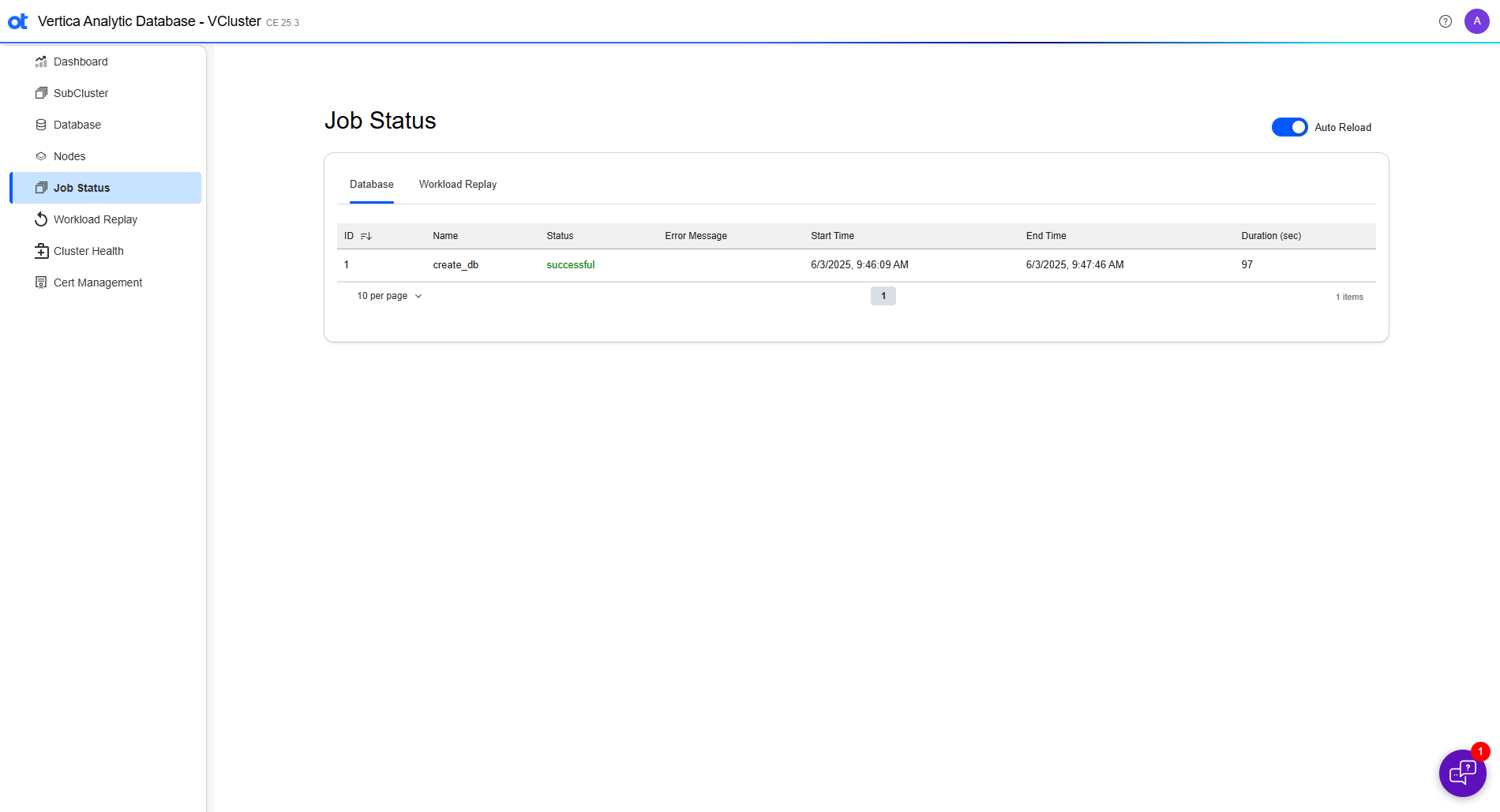

• 2.5: Job Status

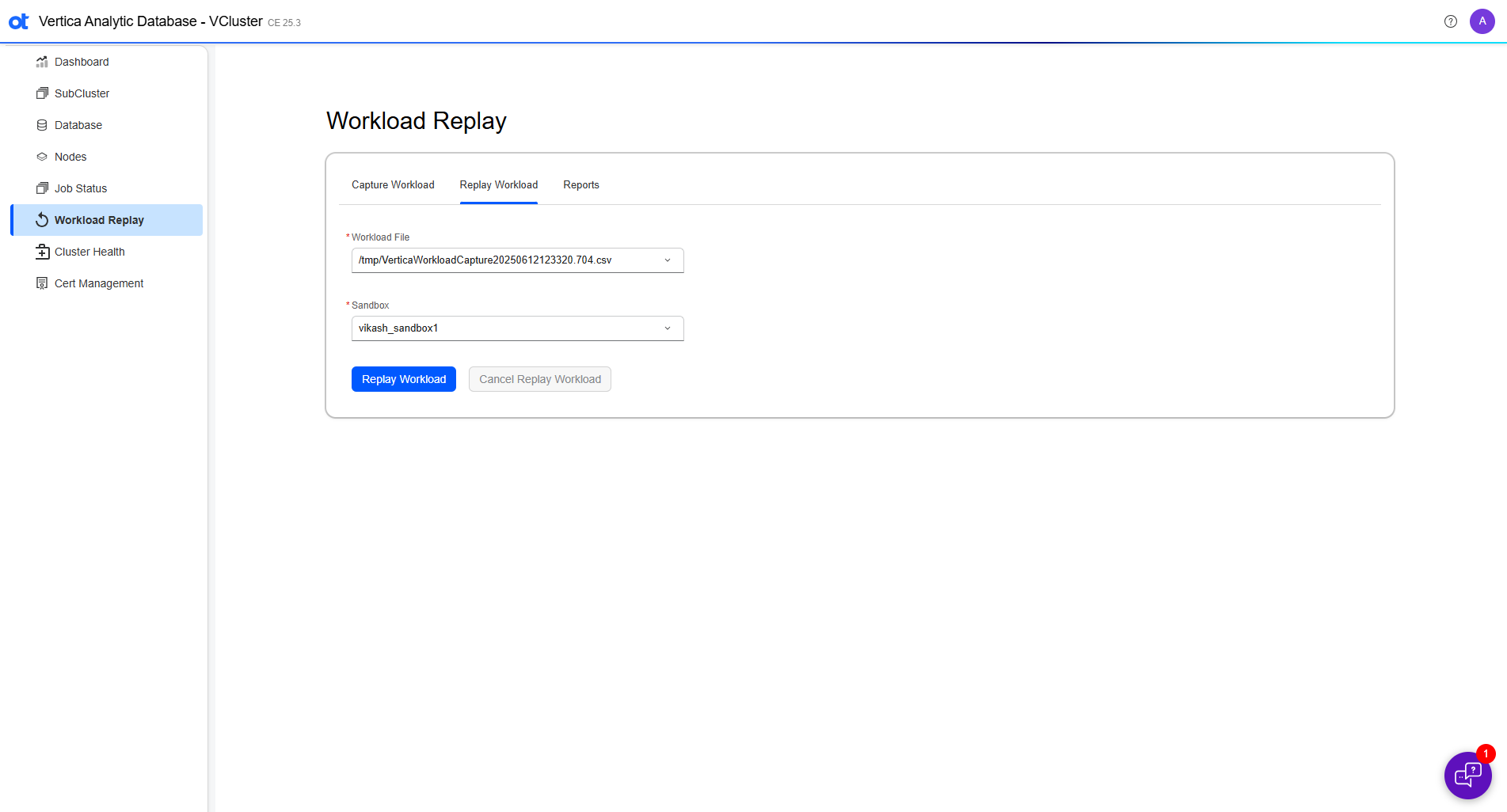

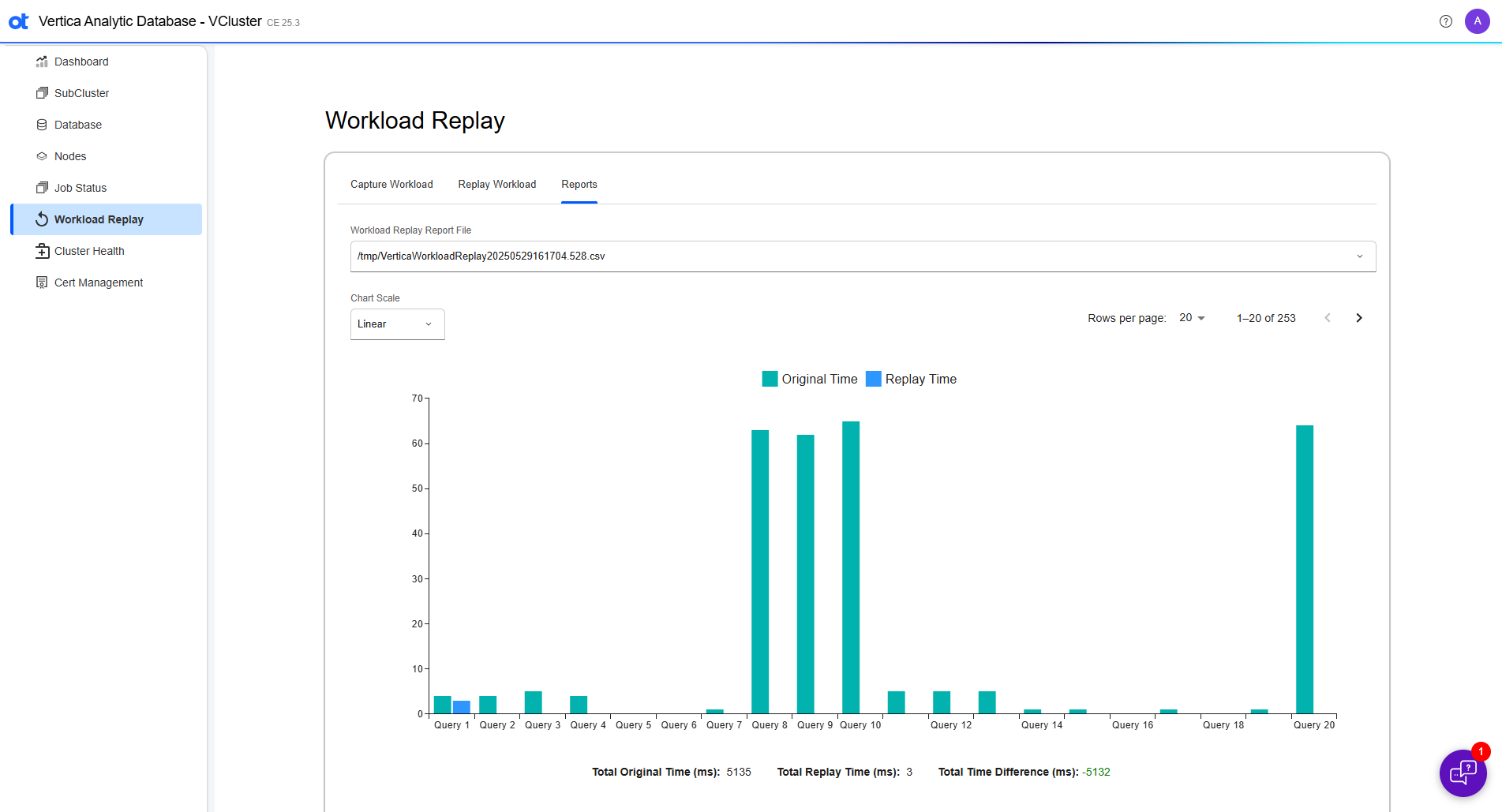

• 2.6: Workload Replay
• 2.7: Cluster Health

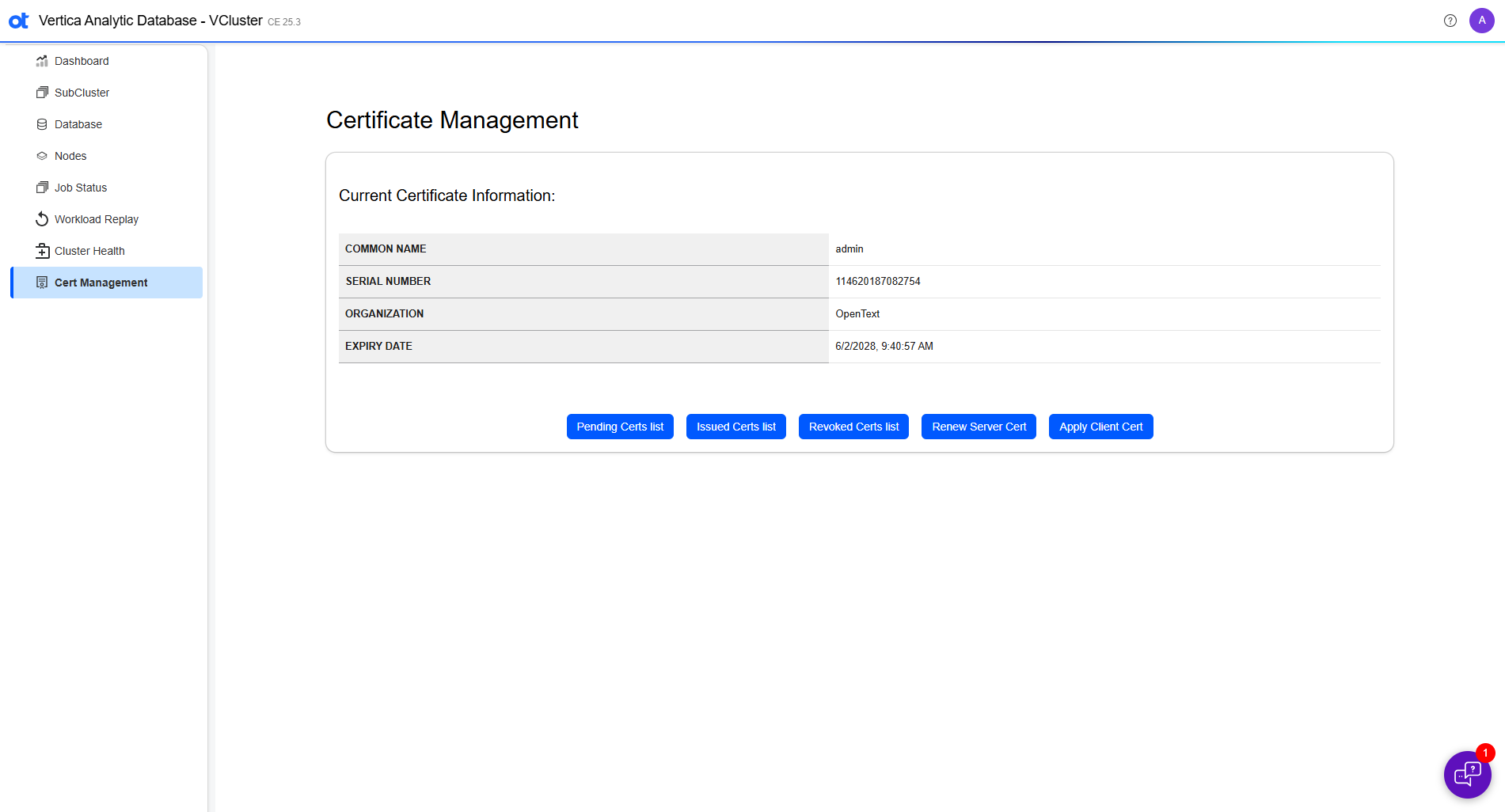

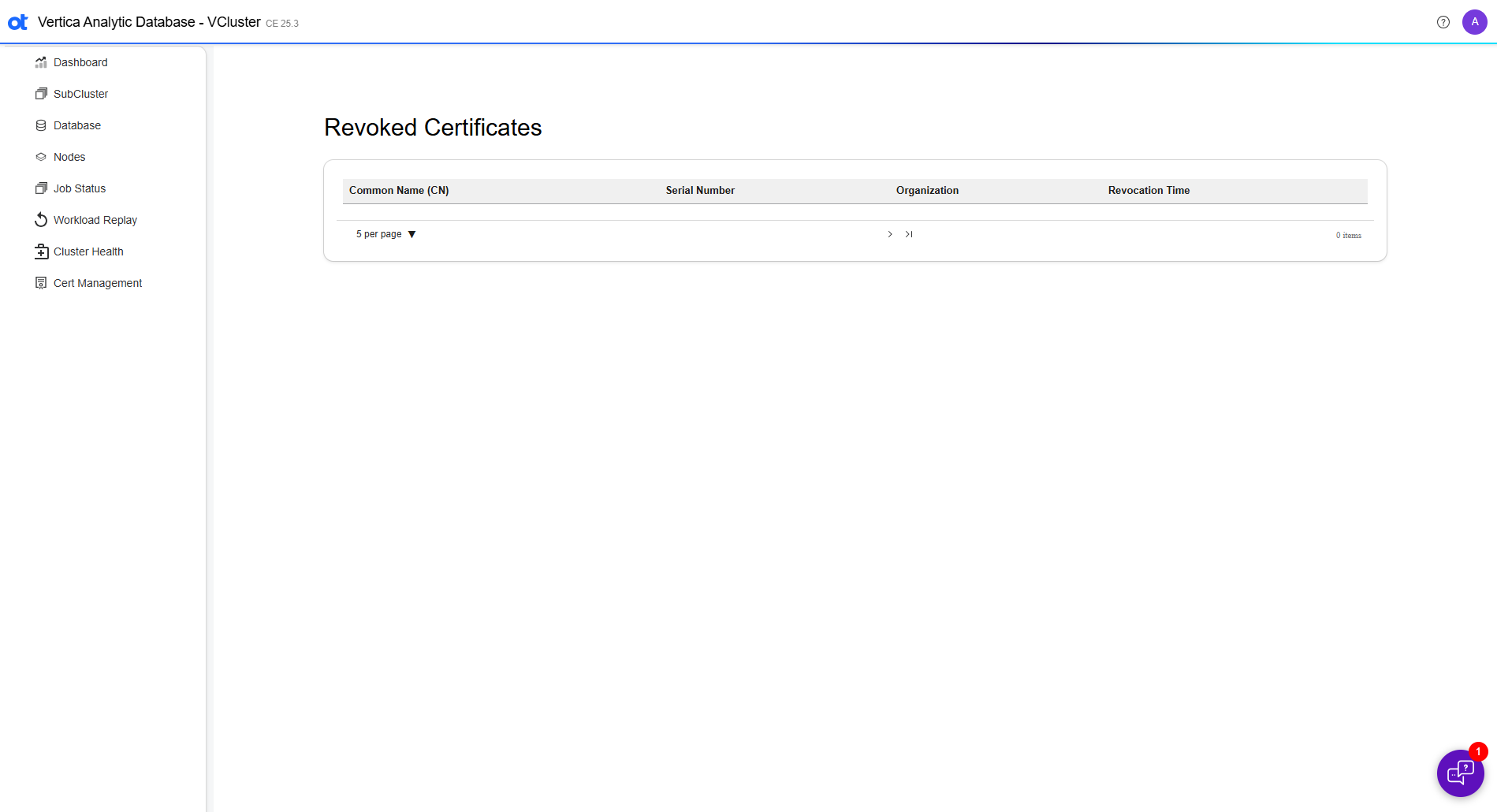

• 2.8: Certificate Management

1 - Database management with VCluster CLI

The VCluster CLI is a tool for administering your database. This tool is bundled with OpenText™ Analytics Database installations. VCluster CLI communicates with database nodes by leveraging the REST APIs provided by Node Management Agent and HTTPS service.

Prerequisites

To use the VCluster CLI, you must first configure the Node Management Agent (NMA), including running the following command on all nodes:

$ /opt/vertica/bin/manage_node_agent.sh start node_management_agent

Best practices

The majority of VCluster CLI commands use the configuration file, which is automatically created when you create a database. You should always use this configuration file when using VCluster CLI, either by ensuring that the configuration file is in the default location (/opt/vertica/config/vertica_cluster.yaml) or specifying it with --config.

To recreate a configuration file, use manage_config recover. This can be useful if you lose your configuration file or if it becomes corrupted.

To view your current configuration file, use manage_config show.

1.1 - Common administrative tasks

Stop, restart, and revive

This procedure can be useful in cases where you want to change AWS instances to save money. For example, you can use us-east instances during the day and switch to us-west instances at night.

This example uses the database created by the following command using the region us-east-1:

$ vcluster create_db --db-name test_db --hosts 192.2.0.1,192.2.0.2,192.2.0.3 --catalog-path /scratch_b/qa --data-path /scratch_b/qa --shard-count 4 --communal-storage-location s3://testbucket/test_db --depot-path /path/to/depot --depot-size 20G --config /opt/vertica/config/vertica_cluster.yaml --config-param awsauth=key:secret,awsenablehttps=0,awsregion=us-east-1,awsendpoint=myhost:9000 --password "" --skip-package-install
✔ Check NMA service health
...
✔ Synchronize catalog with communal storage
[INFO] Successfully created a database with name [test_db]

1. Stop the database:

   $ Stop DB
   /opt/vertica/bin/vcluster stop_db --db-name test_db --config /opt/vertica/config/vertica_cluster.yaml --password ""
   ✔ Collect node information
   ✔ Collect cluster information
   ✔ Update node state from running database
   ✔ Collect information for all up nodes
   ✔ Synchronize catalog with communal storage
   ✔ Stop database
   ✔ Verify database is not running
   [INFO] Successfully stopped a database with name test_db


2. Revive the database. For this example, the database is revived into a different region:

   $ vcluster revive_db --db-name test_db --hosts 192.2.0.1,192.2.0.2,192.2.0.3 --communal-storage-location s3://testbucket/test_db --config /opt/vertica/config/vertica_cluster.yaml --config-param awsauth=key:secret,awsenablehttps=0,awsregion=us-west-1,awsendpoint=myhost:9000
   ✔ Check NMA service health
   ✔ Verify database is running
   ✔ Download cluster_config.json
   ✔ Create necessary directories on database hosts
   ✔ Get network profile of cluster
   ✔ Load remote catalog
   [INFO] Successfully revived database test_db


3. Start the database:

   $ /opt/vertica/bin/vcluster start_db --db-name test_db --hosts 192.2.0.1,192.2.0.2,192.2.0.3 --catalog-path /path/to/catalog --config /opt/vertica/config/vertica_cluster.yaml --config-param awsauth=miniokey:miniosecret,awsenablehttps=0,awsregion=us-east-1,awsendpoint=qastress-39:9000 --password ""
   ✔ Check NMA service health
   ✔ Collect nodes information
   ✔ Download cluster_config.json
   ✔ Check NMA service health
   ✔ Verify database is running
   ✔ Read catalog
   ✔ Check Vertica version
   ✔ Get contents of vertica.conf
   ✔ Get contents of spread.conf
   ✔ Start 3 node(s)
   ✔ Wait for 3 node(s) to come up: all nodes are up
   ✔ Synchronize catalog with communal storage
   ✔ Collect node information
   ✔ Collect cluster information
   ✔ Update node state from running database
   [INFO] Started database test_db


Test on sandboxed subclusters

You can create sandboxed subclusters and perform tests on them without affecting your production database. For details, see Subcluster sandboxing:

1. Add the subcluster sc1 which contains nodes 192.2.0.4 and 192.2.0.5:

   $ vcluster add_subcluster  --subcluster sc1 --db-name test_db --password "" --hosts 192.2.0.1,192.2.0.2,192.2.0.3 --control-set-size 1 --new-hosts 192.2.0.4,192.2.0.5
   ✔ Collect cluster information
   ✔ Check NMA service health
   ...
   ✔ Initiate rebalance of subcluster shards
   [INFO] Successfully added subcluster sc1 with nodes [192.2.0.3,192.2.0.4] to database **test_db**


2. Sandbox the subcluster sc1 with a the new sandbox sand:

   $ vcluster sandbox_subcluster --subcluster sc1 --sandbox sand -p "" --config /opt/vertica/config/vertica_cluster.yaml
   ✔ Collect information for all up nodes
   ✔ Find all subclusters and record their sandboxing information
   ✔ Convert subcluster into sandbox in catalog system
   ✔ Wait for subcluster nodes to come up
   [INFO] Successfully sandboxed subcluster sc1 as sand


3. Verify that your nodes were sandboxed with list_all_nodes. The following command is run from outside the sandbox sand, so the state of nodes in sand are listed as UNKNOWN:

   $ vcluster list_all_nodes --config /opt/vertica/config/vertica_cluster.yaml -p ""
   ✔ Collect node information
   ✔ Collect cluster information
   ✔ Update node state from running database
   ✔ Check NMA service health
   ✔ Read Vertica version
   ✔ Check node state from running database
   [
   {
   "address": "192.0.2.1",
   "name": "v_test_db_node0001",
   "state": "UP",
   "catalog_path": "/scratch_b/qa/test_db/v_test_db_node0001_catalog/Catalog",
   "subcluster": "default_subcluster",
   "sandbox": "",
   "is_primary": true,
   "version": "v24.3.0-20240613"
   },
   {
   "address": "192.0.2.2",
   "name": "v_test_db_node0002",
   "state": "UP",
   "catalog_path": "/scratch_b/qa/test_db/v_test_db_node0002_catalog/Catalog",
   "subcluster": "default_subcluster",
   "sandbox": "",
   "is_primary": true,
   "version": "v24.3.0-20240613"
   },
   {
   "address": "192.0.2.3",
   "name": "v_test_db_node0003",
   "state": "UP",
   "catalog_path": "/scratch_b/qa/test_db/v_test_db_node0003_catalog/Catalog",
   "subcluster": "default_subcluster",
   "sandbox": "",
   "is_primary": true,
   "version": "v24.3.0-20240613"
   },
   {
   "address": "192.0.2.4",
   "name": "v_test_db_node0004",
   "state": "UNKNOWN",
   "catalog_path": "/scratch_b/qa/test_db/v_test_db_node0004_catalog/Catalog",
   "subcluster": "sc1",
   "sandbox": "sand",
   "is_primary": false,
   "version": "v24.3.0-20240613"
   },
   {
   "address": "192.0.2.5",
   "name": "v_test_db_node0005",
   "state": "UNKNOWN",
   "catalog_path": "/scratch_b/qa/test_db/v_test_db_node0005_catalog/Catalog",
   "subcluster": "sc1",
   "sandbox": "sand",
   "is_primary": false,
   "version": "v24.3.0-20240613"
   }
   ]
   [INFO] Successfully listed all nodes


4. After you finish testing your sandboxed subcluster, unsandbox it:

   $ vcluster unsandbox_subcluster --subcluster sc1 -p "" --config /opt/vertica/config/vertica_cluster.yaml
   ✔ Collect node information
   ✔ Collect cluster information
   ✔ Update node state from running database
   ✔ Check NMA service health
   ✔ Collect information for all up nodes
   ✔ Stop node
   ✔ Wait for subcluster nodes to come down
   ✔ Convert sandboxed subcluster into regular subcluster in catalog
   ✔ Delete database directories
   ✔ Check Vertica version
   ✔ Get startup command for unsandboxed nodes
   ✔ Start 0 node(s)
   ✔ Wait for subcluster nodes to come up
   [INFO] Successfully unsandboxed subcluster sc1


1.2 - VCluster commands

This section contains reference material and simple examples for various vcluster commands. These examples assume that you have fulfilled the prerequisites for using vcluster. For more detailed examples, see Common administrative tasks.

You can also use the --help flag on any command or vcluster itself to view the manual.

For the vcluster manual:

$ vcluster --help

For help with any given command, use vcluster command --help or vcluster help command. For example:

$ vcluster create_db --help
$ vcluster help create_db

1.2.1 - add_node

Adds one or more user-specified hosts as nodes to an existing database. You cannot add nodes to a sandboxed subcluster.

Syntax

vcluster add_node options

Required options

--catalog-path string

The absolute path to the catalog directory.

{ -c | --config } string

The path to the config file. If a configuration file is present in the default location (automatically generated by create_db), you do not need to specify this option.

Default: /opt/vertica/config/vertica_cluster.yaml

--new-hosts hostname_or_ip [,...]

A comma-separated list of hosts to add to the database.

Options

--add-node-timeout int

The time, in seconds, to wait for the specified nodes to be added.

Default: 300

--cert-file string

The absolute path to the certificate file. If you specify this option, you must also specify --key-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

--data-path string

The absolute path to the data directory. This should be the same for all nodes in the database.

--depot-path string

[Eon only] The absolute path to depot directory.

--depot-size string

[Eon only] Size of depot in one of the following formats:

• integer{K|M|G|T}, where K is kilobytes, M is megabytes, G is gigabytes, and T is terabytes.
• integer%, which expresses the depot size as a percentage of the total disk size.

--force-removal

Whether to delete any existing database directories in the new hosts before attempting to add them.

{ -h | --help }

Prints help text.

--ipv6

Whether the hosts use IPv6 addresses. Hostnames resolve to IPv4 by default.

--key-file string

Path to the key file. If you specify this option, you must also specify --cert-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

{ -l | --log-path } string

The absolute path for debug logs.

Default: /opt/vertica/log/vcluster.log

--node-names string

[Use only with support guidance] A comma-separated list of node names that exist in the cluster.

{ -p | --password } string

The database password.

--password-file string

The absolute path to a file containing the database password.

If you pass a dash(-) (that is, `--password-file -`), the password is read from STDIN.

Important

Your database password cannot include single quotes.

--read-password-from-prompt

Prompts the user to enter the password.

--skip-rebalance-shards

[Eon only] Whether to skip shard rebalancing.

--subcluster string

[Eon only] The name of the subcluster to which the host(s) should be added. This string must conform to the format used for database names.

Default: Default subcluster

--verbose

Shows the details of VCluster run in the console.

Examples

To add the node 192.2.0.4:

$ vcluster add_node --new-hosts 192.2.0.4

To add multiple nodes:

$ vcluster add_node --new-hosts 192.2.0.4,192.2.0.5

1.2.2 - add_subcluster

Adds a new subcluster to an Eon Mode database. For details, see Creating subclusters.

Syntax

vcluster add_subcluster options

Required options

--catalog-path string

The absolute path to the catalog directory.

{ -c | --config } string

The path to the config file. If a configuration file is present in the default location (automatically generated by create_db), you do not need to specify this option.

Default: /opt/vertica/config/vertica_cluster.yaml

--subcluster string

The name of the new subcluster. This string must conform to the format used for database names.

Options

--cert-file string

The absolute path to the certificate file. If you specify this option, you must also specify --key-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

--control-set-size int

The number of control nodes in the subcluster.

Default: -1 (All nodes in the subcluster are control nodes)

--data-path string

The absolute path to the data directory. This should be the same for all nodes in the database.

--depot-path string

[Eon only] The absolute path to depot directory.

--depot-size string

[Eon only] Size of depot in one of the following formats:

• integer{K|M|G|T}, where K is kilobytes, M is megabytes, G is gigabytes, and T is terabytes.
• integer%, which expresses the depot size as a percentage of the total disk size.

--force-removal

Whether to delete any existing database directories in the new hosts before attempting to add them.

{ -h | --help }

Prints help text.

--ipv6

Whether the hosts use IPv6 addresses. Hostnames resolve to IPv4 by default.

--is-primary

Whether the new subcluster should be a primary subcluster. If this option is omitted, new subclusters are secondary.

--key-file string

Path to the key file. If you specify this option, you must also specify --cert-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

{ -l | --log-path } string

The absolute path for debug logs.

Default: /opt/vertica/log/vcluster.log

--new-hosts string[,...]

A comma-separated list of hosts or IP addresses to add to the subcluster.

{ -p | --password } string

The database password.

--password-file string

The absolute path to a file containing the database password.

If you pass a dash(-) (that is, `--password-file -`), the password is read from STDIN.

Important

Your database password cannot include single quotes.

--read-password-from-prompt

Prompts the user to enter the password.

--skip-rebalance-shards

[Eon only] Whether to skip shard rebalancing.

--verbose

Shows the details of VCluster run in the console.

Examples

To add a primary subcluster with one control node:

$ vcluster add_subcluster --subcluster sc1 \
  --config /opt/vertica/config/vertica_cluster.yaml \
  --is-primary --control-set-size 1

To add a secondary subcluster with one control node containing the new node 192.0.2.4:

$ vcluster add_subcluster --subcluster sc1 \
  --control-set-size 1 --new-hosts 192.0.2.4

1.2.3 - completion

Creates a tab-completion script for a specified shell.

A tab-completion script for your default shell is automatically generated and configured when you install OpenText™ Analytics Database, so completion is only necessary in cases where you either change shells or want to use vcluster from a non-OpenText™ Analytics Database node.

Syntax

vcluster completion subcommand

Subcommands options

shell

The shell for which to generate a completion script, one of the following:

• bash
• fish
• powershell
• zsh

Examples

For example, to configure tab-completion for bash on Linux, generate the tab-completion script, redirecting its output to a new file vcluster_tab_completion:

$ vcluster completion bash > /etc/bash_completion.d/vcluster

Similarly, for bash on macOS:

$ vcluster completion bash > $(brew --prefix)/etc/bash_completion.d/vcluster

1.2.4 - create_db

Creates a new database and its associated configuration file for use with other vcluster commands.

Syntax

vcluster create_db { options }

Required options

--catalog-path string

The absolute path to the catalog directory.

--data-path string

The absolute path to the data directory. This should be the same for all nodes in the database.

{ -d | --db-name } string

The name of the database. You should only use this option if you want to override the database name in your configuration file. This string must conform to the format used for database names.

--hosts strings

A comma-separated list of hosts in database.

Eon options

The following options are required for creating Eon Mode databases, the database mode primarily supported by vcluster:

--communal-storage-location string

[Eon only] The absolute path of your communal storage location.

--shard-count int

[Eon only] The number of shards in the database.

Options

--broadcast

Configures Spread to use UDP broadcast traffic between nodes on the same subnet. Do not combine this option with --point-to-point.

Up to 80 Spread daemons are supported by broadcast traffic. You can exceed the 80-node limit by using large cluster mode, which only installs the Spread daemon on a subset of your nodes.

Default: Disabled

--cert-file string

The absolute path to the certificate file. If you specify this option, you must also specify --key-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

{ -c | --config } string

The path to write the configuration file.

Default: /opt/vertica/config/vertica_cluster.yaml

--config-param PARAMETER=VALUE[,...]

A comma-separated list of PARAMETER=VALUE pairs. Parameters specified with this option override the ones in configuration files, if any, and take the following parameters:

• AWSAuth
• AWSEndpoint
• AWSEnableHttps
• AWSRegion

--depot-path string

[Eon only] The absolute path to depot directory.

--depot-size string

[Eon only] Size of depot in one of the following formats:

• integer{K|M|G|T}, where K is kilobytes, M is megabytes, G is gigabytes, and T is terabytes.
• integer%, which expresses the depot size as a percentage of the total disk size.

--force-cleanup-on-failure

Deletes directories created by create_db upon failure.

--force-overwrite-file

Overwrites the current configuration file, if any.

--force-removal-at-creation

Deletes existing database directories before attempting to create the database.

--get-aws-credentials-from-env-vars

[Eon only] Retrieves AWS credentials from the following environment variables:

• $AWS_ACCESS_KEY_ID
• $AWS_SECRET_ACCESS_KEY

{ -h | --help }

Prints help text.

--ipv6

Whether the hosts use IPv6 addresses. Hostnames resolve to IPv4 by default.

--key-file string

Path to the key file. If you specify this option, you must also specify --cert-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

--large-cluster int

Enables the large cluster layout and sets the number of control nodes. The effect of this option is slightly different on Enterprise and Eon databases. For details, see Enabling large cluster.

Default: -1 (Disabled)

--license string

The absolute path to a license file. The path to this license must be the same on all nodes.

{ -l | --log-path } string

The absolute path for debug logs.

Default: /opt/vertica/log/vcluster.log

{ -p | --password } string

The database password.

--password-file string

The absolute path to a file containing the database password.

If you pass a dash(-) (that is, `--password-file -`), the password is read from STDIN.

Important

Your database password cannot include single quotes.

--point-to-point

Configures Spread to use point-to-point communication between all OpenText™ Analytics Database nodes. You should use this option if your nodes are not on the same subnet and for virtual environments. Do not combine this option with --broadcast.

Up to 80 Spread daemons are supported by point-to-point communication. You can exceed the 80-node limit by using large cluster mode, which only installs the Spread daemon on a subset of your nodes.

Default: Enabled

--read-password-from-prompt

Prompts the user to enter the password.

--skip-package-install

Skips installing the packages in /opt/vertica/packages.

Default: Disabled

--startup-timeout int

The time, in seconds, to wait for the nodes to start after database creation.

Default: 300

--verbose

Shows the details of VCluster run in the console.

Examples

Create a database with the nodes 192.0.2.0, 192.0.2.1, and 192.0.2.2 with the password in /password.txt:

$ vcluster create_db --db-name vertica_db \
    --hosts 192.0.2.0,192.0.2.1,192.0.2.2 \
    --catalog-path /data --data-path /data \
    --password-file password.txt

1.2.5 - drop_db

Drops a stopped database. The effects this command has on your data differs slightly between database modes:

• Enterprise: Deletes the database data (including catalog, data, and depot directories) from all nodes.
• Eon: Deletes non-communal storage data. Dropped Eon Mode databases can be revived.

The data deleted by this operation cannot be recovered.

Syntax

vcluster drop_db [options]

Required options

{ -c | --config } string

The path to the config file. If a configuration file is present in the default location (automatically generated by create_db), you do not need to specify this option.

Default: /opt/vertica/config/vertica_cluster.yaml

Options

--cert-file string

The absolute path to the certificate file. If you specify this option, you must also specify --key-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

{ -h | --help }

Prints help text.

--ipv6

Whether the hosts use IPv6 addresses. Hostnames resolve to IPv4 by default.

--key-file string

Path to the key file. If you specify this option, you must also specify --cert-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

{ -l | --log-path } string

The absolute path for debug logs.

Default: /opt/vertica/log/vcluster.log

--verbose

Shows the details of VCluster run in the console.

Examples

To drop a database:

$ vcluster drop_db --db-name test_db

1.2.6 - help

Prints the help text for any command or subcommand. This is the same as using the --help option.

Syntax

vcluster help command

Commands

command

The command to print help text for.

Options

{ -h | --help }

Prints help text.

1.2.7 - install_packages

Installs the packages in /opt/vertica/packages. This is useful in cases where packages weren't installed during the database installation (either due to --skip-package-install or an error) or if your existing packages are corrupt.

Syntax

vcluster install_packages options

Required options

{ -c | --config } string

The path to the config file. If a configuration file is present in the default location (automatically generated by create_db), you do not need to specify this option.

Default: /opt/vertica/config/vertica_cluster.yaml

Options

--cert-file string

The absolute path to the certificate file. If you specify this option, you must also specify --key-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

--force-reinstall

Install the packages even if they are already installed.

{ -h | --help }

Prints help text.

--ipv6

Whether the hosts use IPv6 addresses. Hostnames resolve to IPv4 by default.

--key-file string

Path to the key file. If you specify this option, you must also specify --cert-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

{ -l | --log-path } string

The absolute path for debug logs.

Default: /opt/vertica/log/vcluster.log

{ -o | --output-file } string

Writes the output to the specified file instead of STDOUT.

Default: STDOUT

{ -p | --password } string

The database password.

--password-file string

The absolute path to a file containing the database password.

If you pass a dash(-) (that is, `--password-file -`), the password is read from STDIN.

Important

Your database password cannot include single quotes.

--read-password-from-prompt

Prompts the user to enter the password.

--verbose

Shows the details of VCluster run in the console.

Examples

To install default packages:

vcluster install_packages --force-reinstall \
  --config /opt/vertica/config/vertica_cluster.yaml

1.2.8 - list_all_nodes

Returns the following information on all nodes:

• IP address
• Name
• State
• Catalog path
• Subcluster
• Sandbox
• Whether the subcluster is primary
• Database version

The major states a node can be in are UP and DOWN. Other states are largely transitional.

Syntax

vcluster list_all_nodes options

Required options

{ -c | --config } string

The path to the config file. If a configuration file is present in the default location (automatically generated by create_db), you do not need to specify this option.

Default: /opt/vertica/config/vertica_cluster.yaml

Options

--cert-file string

The absolute path to the certificate file. If you specify this option, you must also specify --key-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

{ -h | --help }

Prints help text.

--ipv6

Whether the hosts use IPv6 addresses. Hostnames resolve to IPv4 by default.

--key-file string

Path to the key file. If you specify this option, you must also specify --cert-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

{ -l | --log-path } string

The absolute path for debug logs.

Default: /opt/vertica/log/vcluster.log

{ -o | --output-file } string

Writes the output to the specified file instead of STDOUT.

Default: STDOUT

{ -p | --password } string

The database password.

--password-file string

The absolute path to a file containing the database password.

If you pass a dash(-) (that is, `--password-file -`), the password is read from STDIN.

Important

Your database password cannot include single quotes.

--read-password-from-prompt

Prompts the user to enter the password.

--verbose

Shows the details of VCluster run in the console.

Examples

To list the status of nodes for a password-protected database:

$ vcluster list_allnodes --password testpassword \
  --config /opt/vertica/config/vertica_cluster.yaml

1.2.9 - manage_config

Displays the contents of or recreates the VCluster configuration file. The configuration file (/opt/vertica/config/vertica_cluster.yaml) is automatically generated when you use create_db.

Syntax

vcluster manage_config subcommand

Subcommands

recover

Recreates the VCluster configuration file based on the configuration of the database.

show

Shows the contents of the current configuration file.

1.2.9.1 - manage_config recover

Recreates the vcluster configuration file.

This file is automatically generated in /opt/vertica/config/vertica_cluster.yaml when you use create_db.

Syntax

vcluster manage_config recover options

Required options

--catalog-path string

The absolute path to the catalog directory.

{ -c | --config } string

The path to write the configuration file.

Default: /opt/vertica/config/vertica_cluster.yaml

--hosts strings

A comma-separated list of hosts in database.

Options

--after-revive

Recovers the configuration file after reviving the database. You should only use this if, after reviving the database, you modify the configuration file manually, which is not recommended.

--cert-file string

The absolute path to the certificate file. If you specify this option, you must also specify --key-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

{ -d | --db-name } string

The name of the database. You should only use this option if you want to override the database name in your configuration file. This string must conform to the format used for database names.

--depot-path string

[Eon only] The absolute path to depot directory.

{ -h | --help }

Prints help text.

--ipv6

Whether the hosts use IPv6 addresses. Hostnames resolve to IPv4 by default.

--key-file string

Path to the key file. If you specify this option, you must also specify --cert-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

{ -l | --log-path } string

The absolute path for debug logs.

Default: /opt/vertica/log/vcluster.log

--overwrite

Overwrites the existing /opt/vertica/config/vertica_cluster.yaml, if any. If a configuration file already exists and this flag is not specified, recover has no effect.

--verbose

Shows the details of VCluster run in the console.

Examples

Recrates the configuration file in the default location for an Eon Mode database:

$ vcluster manage_config recover --db-name vertica_db \
  --hosts 192.0.2.0,192.0.2.1,192.0.2.2 \
  --catalog-path /data --depot-path /data

Recreates the configuration file to a specific path:

$ vcluster manage_config recover --db-name test_db \
  --hosts 192.0.2.0,192.0.2.1,192.0.2.2 \
  --catalog-path /data --depot-path /data \
  --config /tmp/vertica_cluster.yaml

1.2.9.2 - manage_config show

Displays the contents of the vcluster configuration file.

This file is automatically generated in /opt/vertica/config/vertica_cluster.yaml when you use create_db.

Syntax

vcluster manage_config show options

Required options

{ -c | --config } string

The path to the config file. If a configuration file is present in the default location (automatically generated by create_db), you do not need to specify this option.

Default: /opt/vertica/config/vertica_cluster.yaml

Options

{ -h | --help }

Prints help text.

{ -l | --log-path } string

The absolute path for debug logs.

Default: /opt/vertica/log/vcluster.log

--verbose

Shows the details of VCluster run in the console.

Examples

Show the configuration file in the default location (/opt/vertica/config/vertica_cluster.yaml):

$ vcluster config show

Show the configuration file at the specified location:

$ vcluster config show --config /tmp/vertica_cluster.yaml

1.2.10 - re_ip

Updates the catalog with the IP addresses of your nodes when the database is stopped. You should run this command when the IP address for a node changes. For details, see Reconfiguring node messaging.

You should always stop the database before running re_ip.

Syntax

vcluster re_ip options

Required options

{ -c | --config } string

The path to the config file. If a configuration file is present in the default location (automatically generated by create_db), you do not need to specify this option.

Default: /opt/vertica/config/vertica_cluster.yaml

--re-ip-file string

Path to a .json file that maps the old IP addresses to the new IP addresses. This file should only include the IP addresses of nodes that you want to update. This file has the following format:

[
  {"from_address": "10.20.30.40", "to_address": "10.20.30.41"},
  {"from_address": "10.20.30.42", "to_address": "10.20.30.43"}
]

Options

--cert-file string

The absolute path to the certificate file. If you specify this option, you must also specify --key-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

--config-param PARAMETER=VALUE[,...]

A comma-separated list of PARAMETER=VALUE pairs. Parameters specified with this option override the ones in configuration files, if any, and take the following parameters:

• AWSAuth
• AWSEndpoint
• AWSEnableHttps
• AWSRegion

{ -h | --help }

Prints help text.

--ipv6

Whether the hosts use IPv6 addresses. Hostnames resolve to IPv4 by default.

--key-file string

Path to the key file. If you specify this option, you must also specify --cert-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

{ -l | --log-path } string

The absolute path for debug logs.

Default: /opt/vertica/log/vcluster.log

--verbose

Shows the details of VCluster run in the console.

Examples

To update the IP addresses with the information in /data/re_ip_map.json:

$ vcluster re_ip --db-name vertica_db --re-ip-file /data/re_ip_map.json

1.2.11 - remove_node

Removes one or more nodes from a database.

You cannot remove nodes from a sandboxed subcluster.

Syntax

vcluster remove_node options

Required options

{ -c | --config } string

The path to the config file. If a configuration file is present in the default location (automatically generated by create_db), you do not need to specify this option.

Default: /opt/vertica/config/vertica_cluster.yaml

--remove strings[,...]

A comma-separated list of hosts to remove from the database.

Options

--cert-file string

The absolute path to the certificate file. If you specify this option, you must also specify --key-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

--depot-path string

[Eon only] The absolute path to depot directory.

{ -h | --help }

Prints help text.

--ipv6

Whether the hosts use IPv6 addresses. Hostnames resolve to IPv4 by default.

--key-file string

Path to the key file. If you specify this option, you must also specify --cert-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

{ -l | --log-path } string

The absolute path for debug logs.

Default: /opt/vertica/log/vcluster.log

{ -p | --password } string

The database password.

--password-file string

The absolute path to a file containing the database password.

If you pass a dash(-) (that is, `--password-file -`), the password is read from STDIN.

Important

Your database password cannot include single quotes.

--read-password-from-prompt

Prompts the user to enter the password.

--verbose

Shows the details of VCluster run in the console.

Examples

To remove the nodes at 192.0.2.0 and 192.0.2.1:

$ vcluster remove_node --db-name vertica_db \
  --remove 192.0.2.0,192.0.2.1 \

1.2.12 - remove_sucluster

Removes a non-sandboxed subcluster and its nodes from an Eon Mode database.

Syntax

vcluster remove_subcluster options

Required options

{ -c | --config } string

The path to the config file. If a configuration file is present in the default location (automatically generated by create_db), you do not need to specify this option.

Default: /opt/vertica/config/vertica_cluster.yaml

--subcluster string

Name of subcluster to remove.

Options

--cert-file string

The absolute path to the certificate file. If you specify this option, you must also specify --key-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

--data-path string

The absolute path to the data directory. This should be the same for all nodes in the database.

--depot-path string

[Eon only] The absolute path to depot directory.

{ -h | --help }

Prints help text.

--ipv6

Whether the hosts use IPv6 addresses. Hostnames resolve to IPv4 by default.

--key-file string

Path to the key file. If you specify this option, you must also specify --cert-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

{ -l | --log-path } string

The absolute path for debug logs.

Default: /opt/vertica/log/vcluster.log

{ -p | --password } string

The database password.

--password-file string

The absolute path to a file containing the database password.

If you pass a dash(-) (that is, `--password-file -`), the password is read from STDIN.

Important

Your database password cannot include single quotes.

--read-password-from-prompt

Prompts the user to enter the password.

--verbose

Shows the details of VCluster run in the console.

Examples

To remove the subcluster sc1:

$ vcluster remove_subcluster --subcluster sc1 \
  --config /opt/vertica/config/vertica_cluster.yaml

1.2.13 - revive_db

Revives or restores an Eon Mode database. You cannot revive sandboxes with this command.

Syntax

vcluster revive_db options

Required options

If access to communal storage requires access keys, you must provide the keys with the --config-param option.

--communal-storage-location string

[Eon only] The absolute path of your communal storage location.

{ -d | --db-name } string

The name of the database. You should only use this option if you want to override the database name in your configuration file. This string must conform to the format used for database names.

--hosts strings

Comma-separated list of hosts in the database. The number of hosts that you provide must match the number of hosts in the existing database. You can omit the hosts only if --display-only is specified.

Options

--cert-file string

The absolute path to the certificate file. If you specify this option, you must also specify --key-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

{ -c | --config } string

The path to write the configuration file.

Default: /opt/vertica/config/vertica_cluster.yaml

--config-param PARAMETER=VALUE[,...]

A comma-separated list of PARAMETER=VALUE pairs. Parameters specified with this option override the ones in configuration files, if any, and take the following parameters:

• AWSAuth
• AWSEndpoint
• AWSEnableHttps
• AWSRegion

--display-only

Shows information about the database in communal storage. If you specify this option, you can omit --hosts.

--force-removal

Deletes any existing database directories before reviving, excluding user storage directories.

{ -h | --help }

Prints help text.

--ignore-cluster-lease

Do not check for the existence of other clusters running on shared storage. If another system is using the same communal storage, using this option results in data corruption.

Default: Disabled

--ipv6

Whether the hosts use IPv6 addresses. Hostnames resolve to IPv4 by default.

--key-file string

Path to the key file. If you specify this option, you must also specify --cert-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

--load-catalog-timeout uint

The timeout, in seconds, for loading the remote catalog.

Default: 3600

{ -l | --log-path } string

The absolute path for debug logs.

Default: /opt/vertica/log/vcluster.log

{ -o | --output-file } string

Writes the output to the specified file instead of STDOUT.

Default: STDOUT

--restore-point-archive string

The name of the restore point archive to use for bootstrapping. If you specify this option, you must also specify --restore-point-id or -restore-point-index.

--restore-point-id string

The identifier of the restore point in the restore archive.

--restore-point-index int

The index of the restore point in the restore archive to restore from. Restore point indexes are one-indexed.

--verbose

Shows the details of VCluster run in the console.

Examples

To revive the database and write the configuration file to /opt/vertica/config/vertica_cluster.yaml:

$ vcluster revive_db --db-name vertica_db \
  --hosts 192.0.2.0,192.0.2.1,192.0.2.2 \
  --communal-storage-location /communal \
  --config /opt/vertica/config/vertica_cluster.yaml

To restore the database using the restore point archive db at index 1:

$ vcluster revive_db --db-name vertica_db \
  --hosts 192.0.2.0,192.0.2.1,192.0.2.2 \
  --communal-storage-location /communal \
  --config /opt/vertica/config/vertica_cluster.yaml --force-removal \
  --restore-point-archive db --restore-point-index 1

1.2.14 - sandbox_subcluster

Sandboxes a subcluster in an Eon Mode database. All hosts in the subcluster must be up. When you sandbox a subcluster, its hosts immediately shut down and restart; the subcluster becomes sandboxed after the hosts start back up.

A sandbox can contain multiple subclusters, and subclusters in the sandbox can interact with each other. If you want to isolate subclusters, they must be in separate sandboxes.

Syntax

vcluster sandbox_subcluster options

Required options

{ -c | --config } string

The path to the config file. If a configuration file is present in the default location (automatically generated by create_db), you do not need to specify this option.

Default: /opt/vertica/config/vertica_cluster.yaml

--sandbox string

The name of the sandbox. This string must conform to the format used for database names.

--subcluster string

The name of the subcluster to sandbox.

Options

--cert-file string

The absolute path to the certificate file. If you specify this option, you must also specify --key-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

{ -h | --help }

Prints help text.

--ipv6

Whether the hosts use IPv6 addresses. Hostnames resolve to IPv4 by default.

--key-file string

Path to the key file. If you specify this option, you must also specify --cert-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

{ -l | --log-path } string

The absolute path for debug logs.

Default: /opt/vertica/log/vcluster.log

{ -p | --password } string

The database password.

--password-file string

The absolute path to a file containing the database password.

If you pass a dash(-) (that is, `--password-file -`), the password is read from STDIN.

Important

Your database password cannot include single quotes.

--read-password-from-prompt

Prompts the user to enter the password.

--verbose

Shows the details of VCluster run in the console.

Examples

To sandbox a subcluster sc1:

$ vcluster sandbox_subcluster --subcluster sc1 --sandbox sand \
  --hosts 192.0.2.0,192.0.2.1,192.0.2.2 --db-name test_db

1.2.15 - scrutinize

Runs the scrutinize utility to collect diagnostic information about a database. The cusotmer support team might request you to run this utility when resolving a case.

By default, diagnostics are stored in a /tmp/scrutinize/VerticaScrutinize.timestamp.tar.

For details, see Running scrutinize.

Syntax

vcluster scrutinize options

Required options

{ -c | --config } string

The path to the config file. If a configuration file is present in the default location (automatically generated by create_db), you do not need to specify this option.

Default: /opt/vertica/config/vertica_cluster.yaml

Options

--cert-file string

The absolute path to the certificate file. If you specify this option, you must also specify --key-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

--db-user string

The username of a database user.

--exclude-active-queries

Exclude information affected by currently running queries.

--exclude-containers

Excludes information in system tables that can scale with the number of ROS containers.

{ -h | --help }

Prints help text.

--include-external-table-details

Include information about external tables. This option is computationally expensive.

--include-ros

Include information about ROS containers.

--include-udx-details

Include information describing all UDX functions. This option can be computationally expensive for Eon Mode databases.

--ipv6

Whether the hosts use IPv6 addresses. Hostnames resolve to IPv4 by default.

--key-file string

Path to the key file. If you specify this option, you must also specify --cert-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

--log-age-hours int

The maximum age, in hours, of archived database log files to collect.

Default: 24

--log-age-newest-time YYYY-MM-DD HH [+|-XX]

Timestamp of the minimum age of archived database log files to collect with an optional UTC hour offset [+|-XX].

--log-age-oldest-time YYYY-MM-DD HH [+|-XX]

Timestamp of the maximum age of archived database log files to collect with an optional UTC hour offset [+/-XX].

{ -l | --log-path } string

The absolute path for debug logs.

Default: /opt/vertica/log/vcluster.log

{ -p | --password } string

The database password.

--password-file string

The absolute path to a file containing the database password.

If you pass a dash(-) (that is, `--password-file -`), the password is read from STDIN.

Important

Your database password cannot include single quotes.

--read-password-from-prompt

Prompts the user to enter the password.

--skip-collect-libraries

Skips gathering linked and catalog-shared libraries.

--tarball-name string

Name of the generated .tar.

Default: VerticaScrutinize.timestamp.tar

--verbose

Shows the details of VCluster run in the console.

Examples

Runs scrutinize on all nodes in the database:

$ vcluster scrutinize --db-name vertica_db --db-user dbadmin \
  --password testpassword --config /opt/vertica/config/vertica_cluster.yaml

1.2.16 - show_restore_points

Shows restore points.

Syntax

vcluster show_restore_points options

Required options

{ -c | --config } string

The path to the config file. If a configuration file is present in the default location (automatically generated by create_db), you do not need to specify this option.

Default: /opt/vertica/config/vertica_cluster.yaml

Options

--cert-file string

The absolute path to the certificate file. If you specify this option, you must also specify --key-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

--communal-storage-location string

[Eon only] The absolute path of your communal storage location.

--config-param PARAMETER=VALUE[,...]

A comma-separated list of PARAMETER=VALUE pairs. Parameters specified with this option override the ones in configuration files, if any, and take the following parameters:

• AWSAuth
• AWSEndpoint
• AWSEnableHttps
• AWSRegion

--end-timestamp string

Shows restore points up to and including the specified UTC timestamp in either date-time or date-only format. For example:

• "2006-01-02 15:04:05"
• "2006-01-02"
• "2006-01-02 15:04:05.000000000"

{ -h | --help }

Prints help text.

--ipv6

Whether the hosts use IPv6 addresses. Hostnames resolve to IPv4 by default.

--key-file string

Path to the key file. If you specify this option, you must also specify --cert-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

{ -l | --log-path } string

The absolute path for debug logs.

Default: /opt/vertica/log/vcluster.log

{ -p | --password } string

The database password.

--password-file string

The absolute path to a file containing the database password.

If you pass a dash(-) (that is, `--password-file -`), the password is read from STDIN.

Important

Your database password cannot include single quotes.

--read-password-from-prompt

Prompts the user to enter the password.

--restore-point-archive string

Filter for restore point names that include the specified string.

--restore-point-id string

Filter for restore point IDs that include the specified ID.

--restore-point-index string

Filter for restore points indices that include the specified index.

--start-timestamp string

Shows restore points after and including the specified UTC timestamp in either date-time or date-only format. For example:

• "2006-01-02 15:04:05"
• "2006-01-02"
• "2006-01-02 15:04:05.000000000"

--verbose

Shows the details of VCluster run in the console.

Examples

Show all restore points:

$ vcluster show_restore_points --db-name vertica_db \
  --config /opt/vertica/config/vertica_cluster.yaml

Show all restore points on an Eon Mode database:

$ vcluster show_restore_points --db-name vertica_db \
  --hosts 192.0.2.0,192.0.2.1,192.0.2.2 \
  --communal-storage-location /communal

Show restore points with the name db1:

$ vcluster show_restore_points --db-name test_db \
  --hosts 192.0.2.0,192.0.2.1,192.0.2.2 \
  --restore-point-archive db1

Show restore points on an Eon Mode database with the ID 34668031-c63d-4f3b-ba97-70223c4f97d6:

$ vcluster show_restore_points --db-name test_db \
  --hosts 192.0.2.0,192.0.2.1,192.0.2.2 \
  --communal-storage-location /communal \
  --restore-point-id 34668031-c63d-4f3b-ba97-70223c4f97d6

Show restore points on an Eon Mode database between 2024-03-04 08:32:33.277569 and 2024-03-04 08:32:34.176391:

$ vcluster show_restore_points --db-name test_db \
  --hosts 192.0.2.0,192.0.2.1,192.0.2.2 \
  --communal-storage-location /communal \
  --start-timestamp 2024-03-04 08:32:33.277569 \
  --end-timestamp 2024-03-04 08:32:34.176391

1.2.17 - start_db

Starts a database and establishes cluster quorum.

The IP address provided for each node name must match the current IP address in the OpenText™ Analytics Database catalog. If the IPs do not match, you must first run re_ip to inform the database of the updated IP addresses.

If you pass the --hosts option a subset of all nodes in the cluster, only the specified nodes are started, and the specified subset must be a quorum of nodes.

Syntax

vcluster start_db options

Required options

{ -c | --config } string

The path to the config file. If a configuration file is present in the default location (automatically generated by create_db), you do not need to specify this option.

Default: /opt/vertica/config/vertica_cluster.yaml

Option

--cert-file string

The absolute path to the certificate file. If you specify this option, you must also specify --key-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

--communal-storage-location string

[Eon only] The absolute path of your communal storage location.

--config-param PARAMETER=VALUE[,...]

A comma-separated list of PARAMETER=VALUE pairs. Parameters specified with this option override the ones in configuration files, if any, and take the following parameters:

• AWSAuth
• AWSEndpoint
• AWSEnableHttps
• AWSRegion

--config-param-file string

The absolute path to a file containing configuration parameters and their values.

--eon-mode

[Eon only] Indicates that the database is an Eon Mode database.

{ -h | --help }

Prints help text.

--ipv6

Whether the hosts use IPv6 addresses. Hostnames resolve to IPv4 by default.

--key-file string

Path to the key file. If you specify this option, you must also specify --cert-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

{ -l | --log-path } string

The absolute path for debug logs.

Default: /opt/vertica/log/vcluster.log

--main-cluster-only

Starts the database on a main cluster and does not start any sandboxes.

{ -p | --password } string

The database password.

--password-file string

The absolute path to a file containing the database password.

If you pass a dash(-) (that is, `--password-file -`), the password is read from STDIN.

Important

Your database password cannot include single quotes.

--read-password-from-prompt

Prompts the user to enter the password.

--sandbox subcluster

Name of the sandbox to start.

--timeout int

The time (in seconds) to wait for nodes to start up.

Default: 300

--verbose

Shows the details of VCluster run in the console.

Examples

$ vcluster start_db --password my_password \
  --config /opt/vertica/config/vertica_cluster.yaml

1.2.18 - start_node

Starts nodes in a running cluster. This differs from start_db, which starts OpenText™ Analytics Database after cluster quorum is lost.

Syntax

vcluster restart_node options

Required options

{ -c | --config } string

The path to the config file. If a configuration file is present in the default location (automatically generated by create_db), you do not need to specify this option.

Default: /opt/vertica/config/vertica_cluster.yaml

One of --restart and --start-hosts is required.

--restart node_name=ip_address[,...]

A comma-separated list of node_name=ip_address pairs, specifying the nodes to restart. If ip_address doesn't match the database's listed IP address for that node, OpenText™ Analytics Database updates its catalog information for that node with the specified IP address and then restarts the node.

--start-hosts string[,...]

A comma-separated list of hosts to be restarted.

Options

--cert-file string

The absolute path to the certificate file. If you specify this option, you must also specify --key-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

{ -h | --help }

Prints help text.

--ipv6

Whether the hosts use IPv6 addresses. Hostnames resolve to IPv4 by default.

--key-file string

Path to the key file. If you specify this option, you must also specify --cert-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

{ -l | --log-path } string

The absolute path for debug logs.

Default: /opt/vertica/log/vcluster.log

{ -p | --password } string

The database password.

--password-file string

The absolute path to a file containing the database password.

If you pass a dash(-) (that is, `--password-file -`), the password is read from STDIN.

Important

Your database password cannot include single quotes.

--read-password-from-prompt

Prompts the user to enter the password.

--timeout int

The time (in seconds) to wait for nodes to start up.

Default: 300

--verbose

Shows the details of VCluster run in the console.

Examples

To restart a node:

$ vcluster restart_node --db-name vertica_db \
    --restart v_vertica_db_node0004=192.0.2.0 --password my_password \
    --config /opt/vertica/config/vertica_cluster.yaml

To restart a single node and change its IP address in the database with config file (assuming the node IP address previously stored catalog was not 192.0.2.4):

$ vcluster restart_node --db-name vertica_db \
  --restart v_vertica_db_node0004=192.0.2.4 --password testpassword \
  --config /opt/vertica/config/vertica_cluster.yaml

To restart multiple nodes:

$   vcluster restart_node --db-name test_db \
  --restart v_test_db_node0003=192.0.2.3,v_test_db_node0004=192.0.2.4 \
  --password testpassword --config /opt/vertica/config/vertica_cluster.yaml

1.2.19 - start_subcluster

Starts stopped nodes in a subcluster.

Syntax

vcluster start_subcluster options

Required options

{ -c | --config } string

The path to the config file. If a configuration file is present in the default location (automatically generated by create_db), you do not need to specify this option.

Default: /opt/vertica/config/vertica_cluster.yaml

--subcluster string

Name of subcluster to start

Options

--cert-file string

The absolute path to the certificate file. If you specify this option, you must also specify --key-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

{ -h | --help }

Prints help text.

--ipv6

Whether the hosts use IPv6 addresses. Hostnames resolve to IPv4 by default.

--key-file string

Path to the key file. If you specify this option, you must also specify --cert-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

{ -l | --log-path } string

The absolute path for debug logs.

Default: /opt/vertica/log/vcluster.log

{ -p | --password } string

The database password.

--password-file string

The absolute path to a file containing the database password.

If you pass a dash(-) (that is, `--password-file -`), the password is read from STDIN.

Important

Your database password cannot include single quotes.

--read-password-from-prompt

Prompts the user to enter the password.

--timeout int

The time (in seconds) to wait for nodes to start up.

Default: 300

--verbose

Shows the details of VCluster run in the console.

Examples

To start a subcluster:

$ vcluster start_subcluster --subcluster sc1 \
  --config /opt/vertica/config/vertica_cluster.yaml

1.2.20 - stop_db

Stops a database or sandbox.

Syntax

vcluster stop_db options

Required options

{ -c | --config } string

The path to the config file. If a configuration file is present in the default location (automatically generated by create_db), you do not need to specify this option.

Default: /opt/vertica/config/vertica_cluster.yaml

Options

--cert-file string

The absolute path to the certificate file. If you specify this option, you must also specify --key-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

--drain-seconds int

[Eon only] The time to wait, in seconds, for user connections to close on their own. When the time expires, user connections are automatically closed and the database is shut down. If set to 0, VCluster closes all user connections immediately. If the value is negative, VCluster waits indefinitely until all user connections close.

Default: 60

--eon-mode

[Eon only] Indicates that the database is an Eon Mode database.

{ -h | --help }

Prints help text.

--ipv6

Whether the hosts use IPv6 addresses. Hostnames resolve to IPv4 by default.

--key-file string

Path to the key file. If you specify this option, you must also specify --cert-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

{ -l | --log-path } string

The absolute path for debug logs.

Default: /opt/vertica/log/vcluster.log

--main-cluster-only

Stops the database without stopping any sandboxed subclusters.

{ -p | --password } string

The database password.

--password-file string

The absolute path to a file containing the database password.

If you pass a dash(-) (that is, `--password-file -`), the password is read from STDIN.

Important

Your database password cannot include single quotes.

--read-password-from-prompt

Prompts the user to enter the password.

--sandbox string

Name of the sandbox to stop.

--verbose

Shows the details of VCluster run in the console.

Examples

To stop the database with password authentication:

$ vcluster stop_db --password my_password \
  --config /opt/vertica/config/vertica_cluster.yaml

1.2.21 - stop_node

Stops one or more nodes in a database.

You must provide the host list with the --stop-hosts option followed by one or more hosts to stop as a comma-separated list.

Syntax

vcluster stop_node options

Required options

{ -c | --config } string

The path to the config file. If a configuration file is present in the default location (automatically generated by create_db), you do not need to specify this option.

Default: /opt/vertica/config/vertica_cluster.yaml

--stop-hosts strings[,...]

Comma-separated list of host(s) to stop.

Options

--cert-file string

The absolute path to the certificate file. If you specify this option, you must also specify --key-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

{ -h | --help }

Prints help text.

--ipv6

Whether the hosts use IPv6 addresses. Hostnames resolve to IPv4 by default.

--key-file string

Path to the key file. If you specify this option, you must also specify --cert-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

{ -l | --log-path } string

The absolute path for debug logs.

Default: /opt/vertica/log/vcluster.log

{ -p | --password } string

The database password.

--password-file string

The absolute path to a file containing the database password.

If you pass a dash(-) (that is, `--password-file -`), the password is read from STDIN.

Important

Your database password cannot include single quotes.

--read-password-from-prompt

Prompts the user to enter the password.

--verbose

Shows the details of VCluster run in the console.

Examples

Stop the node on 192.0.2.0 and 192.0.2.1:

$ vcluster stop_node --stop-hosts 192.0.2.0,192.0.2.1 \
  --config /home/dbadmin/vertica_cluster.yaml

1.2.22 - stop_subcluster

Stops a subcluster and all its hosts.

Syntax

vcluster stop_subcluster options

Required options

{ -c | --config } string

The path to the config file. If a configuration file is present in the default location (automatically generated by create_db), you do not need to specify this option.

Default: /opt/vertica/config/vertica_cluster.yaml

--subcluster string

The name of the subcluster to stop.

Options

--cert-file string

The absolute path to the certificate file. If you specify this option, you must also specify --key-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

--drain-seconds int

[Eon only] The time to wait, in seconds, for user connections to close on their own. When the time expires, user connections are automatically closed and the database is shut down. If set to 0, VCluster closes all user connections immediately. If the value is negative, VCluster waits indefinitely until all user connections close.

Default: 60

--force

Shut down the subcluster immediately even if users are connected.

{ -h | --help }

Prints help text.

--ipv6

Whether the hosts use IPv6 addresses. Hostnames resolve to IPv4 by default.

--key-file string

Path to the key file. If you specify this option, you must also specify --cert-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

{ -l | --log-path } string

The absolute path for debug logs.

Default: /opt/vertica/log/vcluster.log

{ -p | --password } string

The database password.

--password-file string

The absolute path to a file containing the database password.

If you pass a dash(-) (that is, `--password-file -`), the password is read from STDIN.

Important

Your database password cannot include single quotes.

--read-password-from-prompt

Prompts the user to enter the password.

--verbose

Shows the details of VCluster run in the console.

Examples

Stops the subcluster sc1, waiting 10 seconds for user connections to close:

$ vcluster stop_subcluster --subcluster sc1 --drain-seconds 10 \
  --config /opt/vertica/config/vertica_cluster.yaml

1.2.23 - unsandbox_subcluster

Removes a subcluster from the sandbox, "unsandboxing" it. When you unsandbox a subcluster, its hosts immediately shut down and restart. When the hosts come back up, the subcluster is unsandboxed.

When a subcluster is unsandboxed, you should manually delete that subcluster's metadata in communal storage before attempting to add a subcluster to that sandbox again. For example, if you unsandbox subcluster sc1, you should delete the directory path_to_catalog_of_sc1/metadata/sandbox_name.

Syntax

$ vcluster unsandbox_subcluster options

Required options

{ -c | --config } string

The path to the config file. If a configuration file is present in the default location (automatically generated by create_db), you do not need to specify this option.

Default: /opt/vertica/config/vertica_cluster.yaml

--subcluster string

The name of the subcluster to be unsandboxed.

Options

--cert-file string

The absolute path to the certificate file. If you specify this option, you must also specify --key-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

{ -h | --help }

Prints help text.

--hosts strings

A comma-separated list of hosts in the database. This must include at least one up host from the primary subcluster.

--ipv6

Whether the hosts use IPv6 addresses. Hostnames resolve to IPv4 by default.

--key-file string

Path to the key file. If you specify this option, you must also specify --cert-file. You should only use --cert-file and --key-file if you have configured the Node Management Agent (NMA) to use custom certificates.

{ -l | --log-path } string

The absolute path for debug logs.

Default: /opt/vertica/log/vcluster.log

{ -p | --password } string

The database password.

--password-file string

The absolute path to a file containing the database password.

If you pass a dash(-) (that is, `--password-file -`), the password is read from STDIN.

Important

Your database password cannot include single quotes.

--read-password-from-prompt

Prompts the user to enter the password.

--verbose

Shows the details of VCluster run in the console.

Examples

To unsandbox subcluster sc1:

$ vcluster unsandbox_subcluster --subcluster sc1 \
  --hosts 192.0.2.0,192.0.2.1,192.0.2.2 --db-name vertica_db

2 - Database management with VCluster UI

The VCluster UI is a tool for administering your database. This tool is bundled with OpenText™ Analytics Database installations. VCluster UI works with the VCluster CLI to manage your database. It works with both the EON and Enterprise database types.

Setting up VCluster UI

Setting up the VCluster UI for your system depends on whether you already have a database set up and how you created your database: AdminTools or VCluster CLI. Use the section below that corresponds to your setup:

• Setting up a new database in VCluster UI

• Configuring your VCluster CLI databaseto use VCluster UI

• Migrating your database from AdminTools to VCluster UI

Setting up a new database in VCluster UI

To setup VCluster UI and create a new database:

1. Start the node management agent on all of the nodes:

   $  /opt/vertica/bin/manage_node_agent.sh start node_management_agent


   Here is an example script that can be used to start the node management agent on multiple nodes:

   for x in 10.20.71.10 10.20.71.11 10.20.71.12 10.20.71.13; do echo "host is $x"; ssh $x /opt/vertica/bin/manage_node_agent.sh
   start node_management_agent; done;


2. Start the VCluster service on one of the hosts (this is the host that you will connect to in order to use VCluster):

   $  /opt/vertica/bin/manage_vcluster_server.sh start vluster_server


   This will create a certificate for the UI that you need to import into your browser.

3. Navigate to /opt/vertica/config/vcluster_server and download the admin.p12 certificate to the local machine where you intend to access the VCluster Web UI.

   Note

   If you need to create your own certificate, use the `vcluster_server --init` command.


4. In a browser, import the certificate by going to Settings > Manage Certificate and add the admin.p12 certificate. The default password for the certificate is vertica.

5. Using the server IP or hostname of the database host where you started the VCluster service, navigate to https://<hostname>:9090 and accept the certificate prompts to enable the VCluster UI health metrics.

6. Launch the VCluster Web UI by going to https://<hostname>:8665.

7. Click on the link in the Dashboard to create your database.

1. Specify the details for your database.

2. Continue with Accessing the VCluster UI.

Configuring your VCluster CLI database to use to VCluster UI

Follow these steps if your database was created using the VCluster CLI:

1. Start the node management agent on all of the nodes:

   $  /opt/vertica/bin/manage_node_agent.sh start node_management_agent


   Here is an example script that can be used to start the node management agent on multiple nodes:

   for x in 10.20.71.10 10.20.71.11 10.20.71.12 10.20.71.13; do echo "host is $x"; ssh $x /opt/vertica/bin/manage_node_agent.sh
   start node_management_agent; done;


2. Start the VCluster service on one of the hosts (this is the host that you will connect to in order to use VCluster):

   $  /opt/vertica/bin/manage_vcluster_server.sh start vluster_server


   This will create a certificate for the UI that you need to import into your browser.

3. Navigate to /opt/vertica/config/vcluster_server and download the admin.p12 certificate to the local machine where you intend to access the VCluster Web UI.

   Note

   If you need to create your own certificate, use the `vcluster_server --init` command.


4. In a browser, import the certificate by going to Settings > Manage Certificate and add the admin.p12 certificate. The default password for the certificate is vertica.

5. Using the server IP or hostname of the database host where you started the VCluster service, navigate to https://<hostname>:9090 and accept the certificate prompts to enable the VCluster UI health metrics.

6. The VCluster Web Server leverages an embedded HTTPS service, which requires TLS authentication for secure access. Run the following to enable TLS:

   vsql -c "create authentication tls_for_all method 'tls' host tls '0.0.0.0/0';"
   vsql -c "grant authentication tls_for_all to public;"


7. Continue with Accessing the VCluster UI.

Migrating your database from AdminTools to VCluster UI

Follow these steps if your database was created using AdminTools:

1. Start the node management agent on all of the nodes:

   $  /opt/vertica/bin/manage_node_agent.sh start node_management_agent


   Here is an example script that can be used to start the node management agent on multiple nodes:

   for x in 10.20.71.10 10.20.71.11 10.20.71.12 10.20.71.13; do echo "host is $x"; ssh $x /opt/vertica/bin/manage_node_agent.sh
   start node_management_agent; done;


2. Run the following script to convert the database configuration to be compatible with VCluster:

   /opt/vertica/bin/vcluster manage_config recover --db-name migrate_to_vcluster --hosts <list of node IP address separated by commas> --catalog-path /scratch_b/disk_a  --depot-path /scratch_b/disk_a


3. Start the VCluster service on one of the hosts (this is the host that you will connect to in order to use VCluster):

   $  /opt/vertica/bin/manage_vcluster_server.sh start vluster_server


   This will create a certificate for the UI that you need to import into your browser.

4. Navigate to /opt/vertica/config/vcluster_server and download the admin.p12 certificate to the local machine where you intend to access the VCluster Web UI.

   Note

   If you need to create your own certificate, use the `vcluster_server --init` command.


5. In a browser, import the certificate by going to Settings > Manage Certificate and add the admin.p12 certificate. The default password for the certificate is vertica.

6. Using the server IP or hostname of the database host where you started the VCluster service, navigate to https://<hostname>:9090 and accept the certificate prompts to enable the VCluster UI health metrics.

7. Continue with Accessing the VCluster UI.

Accessing the VCluster UI

To access VCluster UI, navigate to https://<hostname>:8665 using the server IP of the database host where you started the VCluster service. You are prompted to select the server certificate you imported to your browser previously.

Understanding the VCluster UI

• 1 - OpenText™ Analytics Database Version Information: displays the current version of the database.

• 2 - Api Docs Link: access to the help system for the VCluster UI.

• 3 - Left Navigation: shows the availabe pages and highlights the current page.

• 4 - Page View: displays the current page.

• 5 - VCluster Chatbot: get help with tasks in the interface.

2.1 - Dashboard

The VCluster UI Dashboard is the default page for the UI. It allows you to show health metrics for your database and links to the other pages in the interface.

If you click Health Metrics, your dashboard is replaced with the health metrics for your database. Health metrics include: CPU Usage by Node, Memory Usage by Node, Disk I/O by Node, and Free Disk Space by Node. After clicking Health Metrics, anytime you navigate back to the dashboard during that browser session, the health metrics is displayed. To switch back to the default dashboard, click Stop Health Metrics.

2.2 - Subcluster

The VCluster UI Subcluster page displays a list of your subclusters and the number of nodes in each subcluster. You can also add, remove, start, stop, sandbox, and unsandbox subclusters.

Clicking on the Node Details on a subcluster row lets you see the following about the nodes of that subcluster:

• Name
• Address
• State
• Catalog Path
• Primary Node

2.3 - Database

The Database page shows you the name of your database along with your nodes, their IP Address, and their status.

The folloiwng options are available on this page:

• Start Database
• Stop Database
• Re-IP Database
• Drop Database
• Revive Database

2.4 - Nodes

The Nodes page shows you all of your database nodes. You can add, remove, start, and stop nodes on this page.

2.5 - Job Status

The Job Status page shows you the status of your database jobs and the Workload Replay captures and replays:

Database

Database shows you the status of jobs from the Database, SubCluster, and Nodes pages. This includes adding a node or subcluster, changing the IP of the database, creating the database, and the other options.

Workload Replay

2.6 - Workload Replay

The Workload Replay page lets you view your database workload by viewing database queries and how long they take.

This page is used for the following:

• Evaluating the performance of a new database version before deploying it to the production environment.

• Assessing changes to the system configuration or test the database with new knobs or code changes.

• Assessing the performance of upgrading hardware components or switching to a different operating system.

It uses three tabs to help you perform the assessment: Capture Workload, Replay Workload, and Reports.

Capture

Capture is used to capture a query or multiple queries to see their performance. You specify a start and stop timestamp when the query/queries you want to capture were run. Then click Capture Worload to capture the query/queries. You are redirected to the Job Status > Workload Replay page to see the status of the capture. The job name will be capture-workload and once the status shows successful you can replay the workload. You need to note the file path for the capture job to run the replay.

Replay Workload

After running a capture, Replay Workload is used to compare the first query run time with a new query run time. Select a sandbox from the dropdown to use for the replay. If no sandbox is present in the dropdown, you can create a sandbox using Create sandbox. You need to know the file path from the Job Status > Workload Replay page to select the capture you want to run against. Select that in the Workload File drop down. In the Sandbox drop down, select the sandbox you are using for the replay, then click Replay Workload. You are redirected to the Job Status > Workload Replay page to see the status of the capture.

The job name will be replay-workload and once the status shows successful you can replay the workload. You need to note the file path for the replay job to run the report.

If you want to cancel the replay that is running, hit the Cancel Replay Workload button.

Reports

After running the replay, Reports lets you view the query/queries from both the capture and the replay side by side. In the Workload Replay Report File, make sure the replay file you want to view is selected. It can be found on the Job Status > Workload Replay page. You can see a chart of the original time and the replay time which can be customized to how you want to view it. Scrolling down also shows you a table of the results.

2.7 - Cluster Health

The Cluster Health page lets you monitor the health of your database. There are three sections on this page:

• Event Detailed Info - displays the details of an event if you click on it in the Slow Event Duration Over Time chart. You can click on the event details to see additional details about the event.

• Events Statistics - displays the number of slow events, the longest and average event time, and lets you run a manual slow event check over a specified time period.

• Slow Event Duration Over Time - displays the events from the preview day, 7 days, or 30 days (per your selection) in a chart.

2.8 - Certificate Management

The Certificate Management page shows you your certificate information and manage your certificates.

The following options are available to manage certificates:

• Pending Certs list: shows a list of the status of server and client certificates.

• Issued Certs list: shows a list of the issued certficates.

• Revoked Certs list: shows a list of the revoked certificates.

• Renew Server Cert: lets you renew your server certificate.

• Apply Client Cert: use this option to apply for a client certificate.
