com.vertica.sdk.IterativeSourceFactory Class Reference

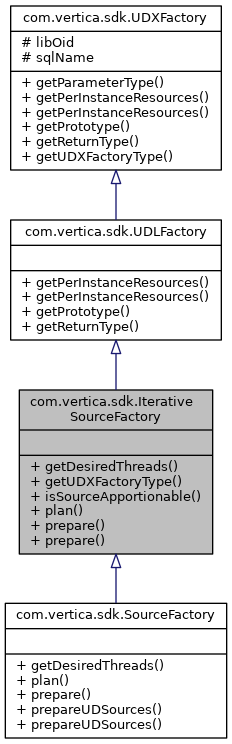

Inheritance diagram for com.vertica.sdk.IterativeSourceFactory:
Inheritance graph

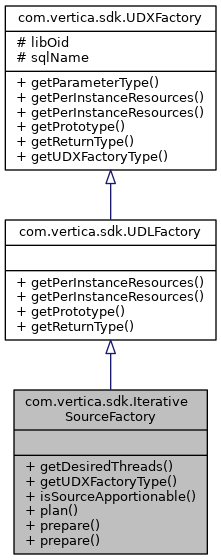

Collaboration diagram for com.vertica.sdk.IterativeSourceFactory:
Collaboration graph

Public Member Functions

int getDesiredThreads (ServerInterface srvInterface, ExecutorPlanContext planCtxt) throws UdfException

void getParameterType (ServerInterface srvInterface, SizedColumnTypes parameterTypes)

void getPerInstanceResources (ServerInterface srvInterface, VResources res)

void getPerInstanceResources (ServerInterface srvInterface, VResources res, SizedColumnTypes argTypes)

void getPrototype (ServerInterface srvInterface, ColumnTypes argTypes, ColumnTypes returnType)

void getReturnType (ServerInterface srvInterface, SizedColumnTypes argTypes, SizedColumnTypes returnType)

UDXType getUDXFactoryType ()

boolean isSourceApportionable ()

void plan (ServerInterface srvInterface, NodeSpecifyingPlanContext planCtxt) throws UdfException

SourceIterator prepare (ServerInterface srvInterface, NodeSpecifyingPlanContext planCtxt) throws UdfException

SourceIterator prepare (ServerInterface srvInterface, ExecutorPlanContext planCtxt) throws UdfException


Protected Attributes

long libOid

String sqlName


Detailed Description

Source factory that works with a SourceIterator to produce UDSources.

Usually it is easier to subclass SourceFactory and have its prepareUDSources() method return a vector of UDSource objects. Behind the scenes, Vertica uses a built-in iterator to pull sources from that vector. However, if you need to be able to control source management at this level, you can instead write your own SourceIterator and use it with an IterativeSourceFactory.

This class performs initial validation and planning of a query, before it is distributed over the network. It also instantiates objects to perform further initialization on each node, once the query has been distributed.

Note that SourceFactories are singletons. Subclasses should be stateless, with no fields containing data, just methods. plan() and prepare() methods must never modify any global variables or state; they may only modify the variables that they are given as arguments. (If global state must be modified, use SourceIterator.)

Member Function Documentation

int com.vertica.sdk.IterativeSourceFactory.getDesiredThreads ( ServerInterface  srvInterface,
ExecutorPlanContext  planCtxt
) throws UdfException

Request the number of threads that the SourceFactory wants to use. This function is called on each node before prepare().

'planCtxt' contains the same parameters stored by plan() method. It also exposes the maximum number of allowed threads, via 'getMaxAllowedThreads()'. Further computations can be stored in its 'ExecutorParamWriter' object, for use in prepare().

Parameters
srvInterfacea ServerInterface object used to communicate with Vertica
planCtxtplan context specifying nodes
Returns
number of threads the SourceFactory wants to use
Exceptions
UdfExceptionUDF problem
void com.vertica.sdk.UDXFactory.getParameterType ( ServerInterface  srvInterface,
SizedColumnTypes  parameterTypes
)
inherited

Function to tell Vertica the name and types of parameters that this function uses. Vertica will use this to warn function callers that certain parameters they provide are not affecting anything, or that certain parameters that are not being set are reverting to default values.

Parameters
srvInterfacea ServerInterface object used to communicate with Vertica
parameterTypesSizedColumnTypes describing the parameters
void com.vertica.sdk.UDLFactory.getPerInstanceResources ( ServerInterface  srvInterface,
VResources  res,
SizedColumnTypes  argTypes
)
inherited

Set the resource required for each instance of the UDX Object subclass

Parameters
srvInterfacea ServerInterface object used to communicate with Vertica
resa VResources object used to tell Vertica what resources are needed by the UDX
argTypesProvides the data types of arguments that this UDx was called with. This may be used to calculate the resources required by the UDx.
void com.vertica.sdk.UDLFactory.getPrototype ( ServerInterface  srvInterface,
ColumnTypes  argTypes,
ColumnTypes  returnType
)
virtualinherited

Provides the argument and return types of the UDL. UDL's take no input tuples; as such, their prototype is empty.

Implements com.vertica.sdk.UDXFactory.

void com.vertica.sdk.UDLFactory.getReturnType ( ServerInterface  srvInterface,
SizedColumnTypes  argTypes,
SizedColumnTypes  returnType
)
virtualinherited

Not used in this form

Implements com.vertica.sdk.UDXFactory.

UDXType com.vertica.sdk.IterativeSourceFactory.getUDXFactoryType ( )
virtual

User subclasses should use the appropriate subclass of UDXFactory and not override this method on their own.

Returns
the type of UDX Object instance this factory returns.

Implements com.vertica.sdk.UDXFactory.

boolean com.vertica.sdk.IterativeSourceFactory.isSourceApportionable ( )
Returns
if this source factory has the capability to generate source with portions
void com.vertica.sdk.IterativeSourceFactory.plan ( ServerInterface  srvInterface,
NodeSpecifyingPlanContext  planCtxt
) throws UdfException

Execute any planning logic required at query plan time. This method is run once per query, during query initialization. Its job is to perform parameter validation, and to modify the set of nodes that the COPY statement will run on.

plan() runs exactly once per query, on the initiator node. If it throws an exception, the query will not proceed; it will be aborted prior to distributing the query to the other nodes and running prepare().

Parameters
srvInterfacea ServerInterface object used to communicate with Vertica
planCtxtplan context specifying nodes
Exceptions
UdfExceptionUDF problem
SourceIterator com.vertica.sdk.IterativeSourceFactory.prepare ( ServerInterface  srvInterface,
NodeSpecifyingPlanContext  planCtxt
) throws UdfException

Prepare this SourceFactory to start creating sources. This function will be called on each node, prior to the Load operator starting to execute and prior to any other virtual functions on this class being called.

Parameters
srvInterfaceInterface to server operations and functionality, including (not-per-column) parameter lookup.
planCtxtContext for storing and retrieving arbitrary data, for use just by this instance of this query. The same context is shared with plan() and getDesiredThreads(). It also provides functionality for determining which nodes this query is running on.
Returns
A SourceIterator object for use in the query.
Exceptions
UdfExceptionUDF problem

Referenced by com.vertica.sdk.IterativeSourceFactory.prepare().

SourceIterator com.vertica.sdk.IterativeSourceFactory.prepare ( ServerInterface  srvInterface,
ExecutorPlanContext  planCtxt
) throws UdfException

Prepare this SourceFactory to start creating sources. This function will be called on each node, prior to the Load operator starting to execute and prior to any other virtual functions on this class being called.

Parameters
srvInterfaceInterface to server operations and functionality, including (not-per-column) parameter lookup.
planCtxtContext for storing and retrieving arbitrary data, for use just by this instance of this query. The same context is shared with plan() and getDesiredThreads(). It provides functionality for determining which nodes this query is running on, as well as the number of threads allowed by the resource pool (via getMaxAllowedThreads()) and, more importantly, the actual load concurrency (via getLoadConcurrency()).
Returns
A SourceIterator object for use in the query.
Exceptions
UdfExceptionUDF problem
