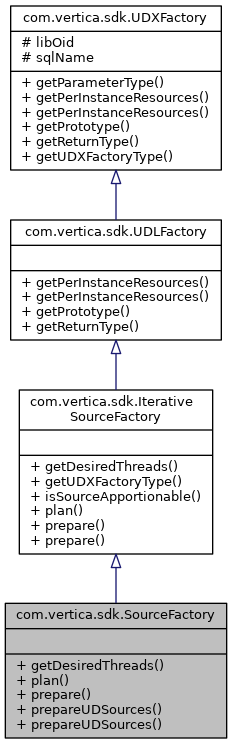

Inheritance diagram for com.vertica.sdk.SourceFactory:

Collaboration diagram for com.vertica.sdk.SourceFactory:

Public Member Functions
int	getDesiredThreads (ServerInterface srvInterface, ExecutorPlanContext planCtxt) throws UdfException

void	getParameterType (ServerInterface srvInterface, SizedColumnTypes parameterTypes)

void	getPerInstanceResources (ServerInterface srvInterface, VResources res)

void	getPerInstanceResources (ServerInterface srvInterface, VResources res, SizedColumnTypes argTypes)

void	getPrototype (ServerInterface srvInterface, ColumnTypes argTypes, ColumnTypes returnType)

void	getReturnType (ServerInterface srvInterface, SizedColumnTypes argTypes, SizedColumnTypes returnType)

UDXType	getUDXFactoryType ()

boolean	isSourceApportionable ()

void	plan (ServerInterface srvInterface, NodeSpecifyingPlanContext planCtxt) throws UdfException

SourceIterator	prepare (ServerInterface srvInterface, NodeSpecifyingPlanContext planCtxt) throws UdfException

SourceIterator	prepare (ServerInterface srvInterface, ExecutorPlanContext planCtxt) throws UdfException

ArrayList< UDSource >	prepareUDSources (ServerInterface srvInterface, NodeSpecifyingPlanContext planCtxt) throws UdfException

ArrayList< UDSource >	prepareUDSources (ServerInterface srvInterface, ExecutorPlanContext planCtxt) throws UdfException

Protected Attributes
long	libOid

String	sqlName

Detailed Description

Produces and initializes UDSources to process input data sources.

Subclassing SourceFactory is the preferred way to implement a factory corresponding to a UDSource. If you need more flexibility, implement both IterativeSourceFactory and SourceIterator. (See the documentation of IterativeSourceFactory.)

Member Function Documentation

int com.vertica.sdk.SourceFactory.getDesiredThreads	(	ServerInterface	srvInterface,
		ExecutorPlanContext	planCtxt
	)		throws UdfException

Request the number of threads that the SourceFactory wants to use. This function is called on each node before prepareUDSources().

'planCtxt' contains the same parameters stored by plan() method. It also exposes the maximum number of allowed threads, via 'getMaxAllowedThreads()'. Further computations can be stored in its 'ExecutorParamWriter' object, for use in prepare().

void com.vertica.sdk.UDXFactory.getParameterType	(	ServerInterface	srvInterface,
		SizedColumnTypes	parameterTypes
	)

inherited

Function to tell Vertica the name and types of parameters that this function uses. Vertica will use this to warn function callers that certain parameters they provide are not affecting anything, or that certain parameters that are not being set are reverting to default values.

Parameters

srvInterface	a ServerInterface object used to communicate with Vertica
parameterTypes	SizedColumnTypes describing the parameters

void com.vertica.sdk.UDLFactory.getPerInstanceResources	(	ServerInterface	srvInterface,
		VResources	res,
		SizedColumnTypes	argTypes
	)

inherited

Set the resource required for each instance of the UDX Object subclass

Parameters

srvInterface	a ServerInterface object used to communicate with Vertica
res	a VResources object used to tell Vertica what resources are needed by the UDX
argTypes	Provides the data types of arguments that this UDx was called with. This may be used to calculate the resources required by the UDx.

void com.vertica.sdk.UDLFactory.getPrototype	(	ServerInterface	srvInterface,
		ColumnTypes	argTypes,
		ColumnTypes	returnType
	)

virtualinherited

Provides the argument and return types of the UDL. UDL's take no input tuples; as such, their prototype is empty.

Implements com.vertica.sdk.UDXFactory.

void com.vertica.sdk.UDLFactory.getReturnType	(	ServerInterface	srvInterface,
		SizedColumnTypes	argTypes,
		SizedColumnTypes	returnType
	)

virtualinherited

Not used in this form

Implements com.vertica.sdk.UDXFactory.

UDXType com.vertica.sdk.IterativeSourceFactory.getUDXFactoryType ( )

virtualinherited

User subclasses should use the appropriate subclass of UDXFactory and not override this method on their own.

Returns: the type of UDX Object instance this factory returns.

Implements com.vertica.sdk.UDXFactory.

boolean com.vertica.sdk.IterativeSourceFactory.isSourceApportionable ( )

inherited

Returns: if this source factory has the capability to generate source with portions

void com.vertica.sdk.SourceFactory.plan	(	ServerInterface	srvInterface,
		NodeSpecifyingPlanContext	planCtxt
	)		throws UdfException

Execute any planning logic required at query plan time. This method is run once per query, during query initialization. Its job is to perform parameter validation, and to modify the set of nodes that the COPY statement will run on.

plan() runs exactly once per query, on the initiator node. If it throws an exception, the query will not proceed; it will be aborted prior to distributing the query to the other nodes and running prepare().

Parameters

srvInterface	Interface to server operations and functionality, including (not-per-column) parameter lookup
planCtxt	Context for storing and retrieving arbitrary data, for use just by this instance of this query. The same context is shared with plan(). Also provides functionality for specifying which nodes this query will run on.

Exceptions

UdfException UDF problem

SourceIterator com.vertica.sdk.IterativeSourceFactory.prepare	(	ServerInterface	srvInterface,
		NodeSpecifyingPlanContext	planCtxt
	)		throws UdfException

inherited

Prepare this SourceFactory to start creating sources. This function will be called on each node, prior to the Load operator starting to execute and prior to any other virtual functions on this class being called.

Parameters

srvInterface	Interface to server operations and functionality, including (not-per-column) parameter lookup.
planCtxt	Context for storing and retrieving arbitrary data, for use just by this instance of this query. The same context is shared with plan() and getDesiredThreads(). It also provides functionality for determining which nodes this query is running on.

Returns: A SourceIterator object for use in the query.

Exceptions

UdfException UDF problem

Referenced by com.vertica.sdk.IterativeSourceFactory.prepare().

SourceIterator com.vertica.sdk.SourceFactory.prepare	(	ServerInterface	srvInterface,
		ExecutorPlanContext	planCtxt
	)		throws UdfException

INTERNAL

Referenced by com.vertica.sdk.SourceFactory.getDesiredThreads().

ArrayList<UDSource> com.vertica.sdk.SourceFactory.prepareUDSources	(	ServerInterface	srvInterface,
		NodeSpecifyingPlanContext	planCtxt
	)		throws UdfException

Create UDSources. This function will be called on each node, prior to the Load operator starting to execute.

Parameters

srvInterface	Interface to server operations and functionality, including (not-per-column) parameter lookup.
planCtxt	Context for storing and retrieving arbitrary data, for use just by this instance of this query. The same context is shared with plan() and getDesiredThreads(). It also provides functionality for determining which nodes this query is running on.

Returns: An ArrayList of UDSources to use for this query. Sources will be loaded in a pooled manner, several at a time.

Exceptions

UdfException UDF problem

Referenced by com.vertica.sdk.SourceFactory.prepare(), and com.vertica.sdk.SourceFactory.prepareUDSources().

ArrayList<UDSource> com.vertica.sdk.SourceFactory.prepareUDSources	(	ServerInterface	srvInterface,
		ExecutorPlanContext	planCtxt
	)		throws UdfException

Create UDSources. This function will be called on each node, prior to the Load operator starting to execute.

Parameters

srvInterface Interface to server operations and functionality, including (not-per-column) parameter lookup.

planCtxt Context for storing and retrieving arbitrary data, for use just by this instance of this query. The same context is shared with plan() and getDesiredThreads(). It provides functionality for determining which nodes this query is running on, as well as the number of threads allowed by the resource pool (via getMaxAllowedThreads()) and, more importantly, the actual load concurrency (via getLoadConcurrency()).

Returns: An ArrayList of UDSources to use for this query. Sources will be loaded in a pooled manner, several at a time.

Exceptions

UdfException UDF problem
