C++ SDK Documentation  23.4.0
Vertica::UnsizedUDSource Class Referenceabstract

Base class for UDSource. Use, with IterativeSourceFactory, if computing the size of a source up front would be prohibitively expensive, or if the number of distinct sources would be prohibitively large to use the standard API. Typically you should use UDSource instead. More...

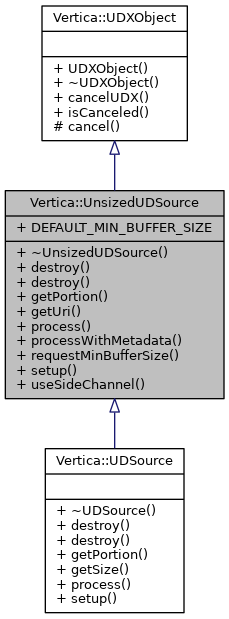

Inheritance diagram for Vertica::UnsizedUDSource:
Inheritance graph

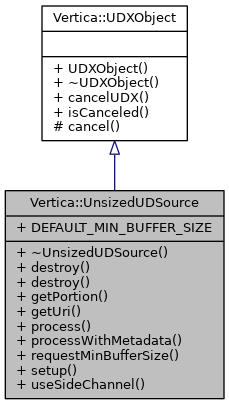

Collaboration diagram for Vertica::UnsizedUDSource:
Collaboration graph

Public Member Functions

void cancelUDX (ServerInterface &srvInterface)

virtual void destroy (ServerInterface &srvInterface)

virtual void destroy (ServerInterface &srvInterface, SessionParamWriterMap &udSessionParams)

virtual Portion getPortion ()=0

virtual std::string getUri ()

bool isCanceled () const

virtual StreamState process (ServerInterface &srvInterface, DataBuffer &output)=0

virtual StreamState processWithMetadata (ServerInterface &srvInterface, DataBuffer &output, LengthBuffer &output_lengths)

virtual size_t requestMinBufferSize (ServerInterface &srvInterface)

virtual void setup (ServerInterface &srvInterface)

virtual bool useSideChannel ()


Static Public Attributes

static const size_t DEFAULT_MIN_BUFFER_SIZE = 1024 * 1024


Protected Member Functions

virtual void cancel (ServerInterface &srvInterface)


Detailed Description

Base class for UDSource. Use, with IterativeSourceFactory, if computing the size of a source up front would be prohibitively expensive, or if the number of distinct sources would be prohibitively large to use the standard API. Typically you should use UDSource instead.

Not intended or optimized for typical applications.

Note that it is UNSAFE to maintain pointers or references to any of these arguments (or any other argument passed by reference into any other function in this API) beyond the scope of the function call in question. For example, do not store a reference to the server interface or the input block on an instance variable. Vertica may free and replace these objects.

Member Function Documentation

virtual void Vertica::UDXObject::cancel ( ServerInterface srvInterface)
inlineprotectedvirtualinherited

Cancel callback to be overridden by the UDX. Called when the query running the UDX has been canceled.

Note
  • This method will be invoked at most once per UDX object. Once a UDX object has been canceled, it will never be un-canceled.
  • This method may be called from a separate thread, concurrently with other methods of this UDX object (but never the constructor or destructor). Implementations must be thread-safe with all methods of this UDX.
  • This method will be invoked for either an explicit user cancel, or in the event of an error during query execution.

Referenced by Vertica::UDXObject::cancelUDX().

void Vertica::UDXObject::cancelUDX ( ServerInterface srvInterface)
inlineinherited

Cancel callback invoked when the query running the UDX has been canceled. See cancel().

virtual Portion Vertica::UnsizedUDSource::getPortion ( )
pure virtual

Return the portion this source object is responsible for (if any).

This can be used by other elements of the load stack to determine how much data to process. It also will uniquely identify a source in the load_sources view. As such, this will be called BEFORE setup() (for load_sources) and again after setup() (for data processing).

Implemented in Vertica::UDSource.

virtual std::string Vertica::UnsizedUDSource::getUri ( )
inlinevirtual

UnsizedUDSource::getUri()

Return the URI of the current source of data.

This function will be invoked during execution to fill in monitoring information.

bool Vertica::UDXObject::isCanceled ( ) const
inlineinherited
Returns
true iff this UDX has been canceled
virtual StreamState Vertica::UnsizedUDSource::processWithMetadata ( ServerInterface srvInterface,
DataBuffer output,
LengthBuffer output_lengths
)
inlinevirtual

UnsizedUDSource::processWithMetadata()

Reads data from the input source and record length metadata from the side channel and processes it. To implement processWithMetadata(), you must override useSideChannel() to return true. Vertica invokes this method repeatedly until it returns DONE or the query is canceled by the user.

Input: an external data source.
Output: a stream of data bytes, and a stream of bytes containing message length metadata from the data source.

Returns
OUTPUT_NEEDED
DONE
KEEP_GOING
See Vertica::StreamState for details about return values.

On each invocation, processWithMetadata() should acquire more data and write that data to the buffer specified by output, and write the message lengths to output_lengths.

For the DataBuffer, processWithMetadata() should set output.offset (an output parameter) to the number of bytes that were written to the output buffer. It is common, though not necessary, for this to be the same as output.size (an input parameter). When processWithMetadata() is called, output.offset is uninitialized. To indicate that the buffer is too small to hold a record, processWithMetadata() should set output.offset and output_length.offset to 0 and return OUTPUT_NEEDED. Then processWithMetadata() is called again with a larger buffer.

For the LengthBuffer, processWithMetadata() should set output_lengths.offset to the number of length values that were written to the output_lengths buffer. If output.offset is set to 0, then output_lengths.offset should also be set to 0.

In general, processWithMetadata() code should assume that data buffers start at output.buf[output.offset] and length buffers start at output_lengths.buf[output_lengths.offset].

As a performance optimization, upstream operators might start processing emitted data (data between output.buf[0] and output.buf[output.offset] in the DataBuffer, and between output_lengths.buf[0] and output_lengths.buf[output.offset] in the LengthBuffer) before OUTPUT_NEEDED is returned. For this reason, output.offset and output_lengths.offset must be strictly increasing.

virtual size_t Vertica::UnsizedUDSource::requestMinBufferSize ( ServerInterface srvInterface)
inlinevirtual

Request a minimum buffer size into which this source will read data. This will be called after setup(), before the first call to process().

virtual bool Vertica::UnsizedUDSource::useSideChannel ( )
inlinevirtual

UnsizedUDSource::useSideChannel()

Provides access to the side channel containing record length metadata, when the UnsizedUDSource has metadata about record boundaries available in a structured format that is separate from the data payload.

Override and return true to indicate that processWithMetadata() should be called instead of process().

Return false to implement process().

Returns
false by default.
